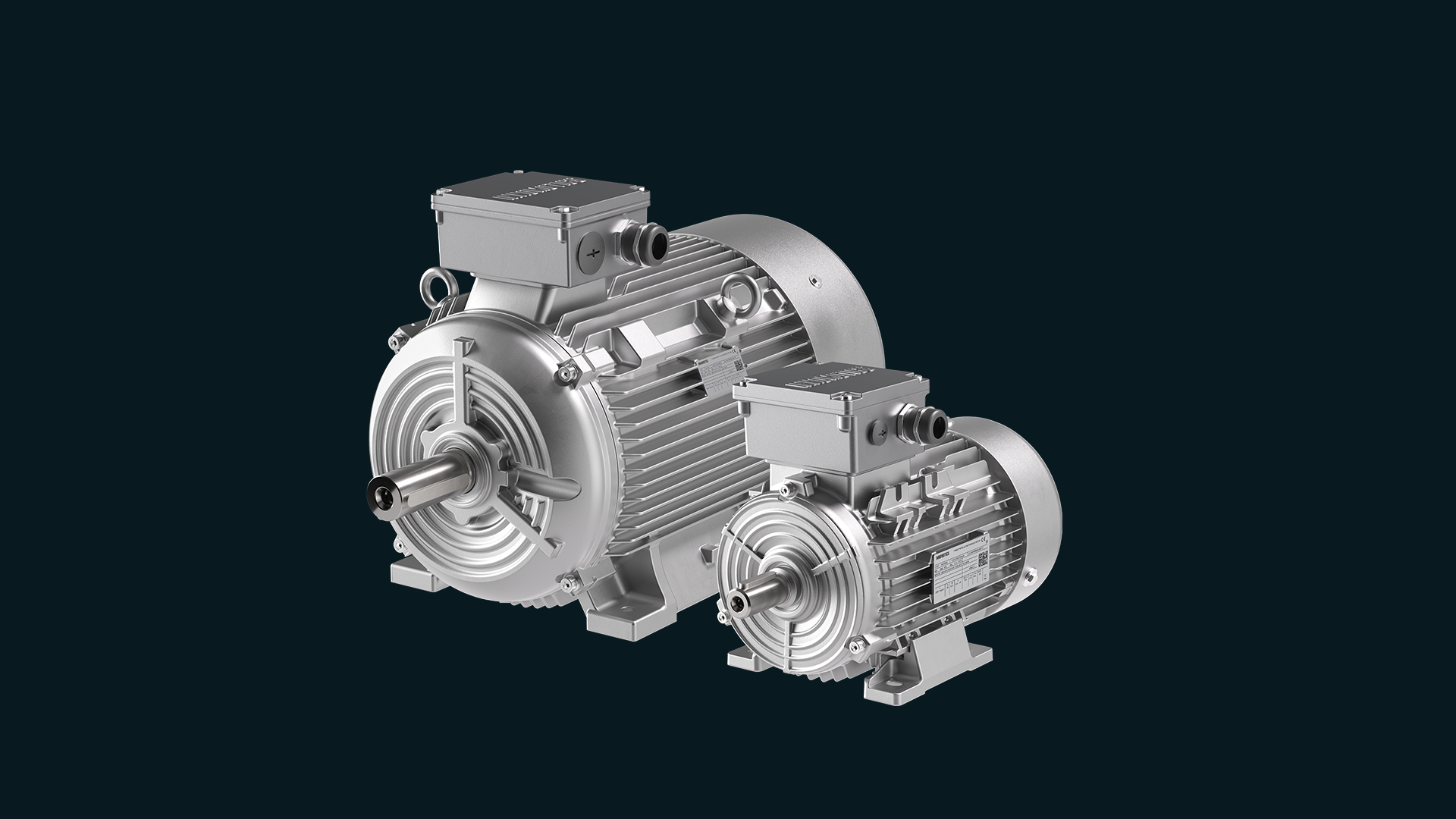

Flow Line Motors
Designed for standard applications
As part of the Innomotics motor family, the Flow Line (FL) motors comply with the latest IEC standards and European regulations. They meet the requirements of efficiency class IE3 and IE4 in the respective mandatory range.
An excellent choice
Flow Line motors are the first choice when it comes to the reliable and cost-efficient operation of standard applications, like pumps, fans and conveyor belts in a normal industrial environment. They impress with reduced total cost of ownership and excellent performance in daily operation.

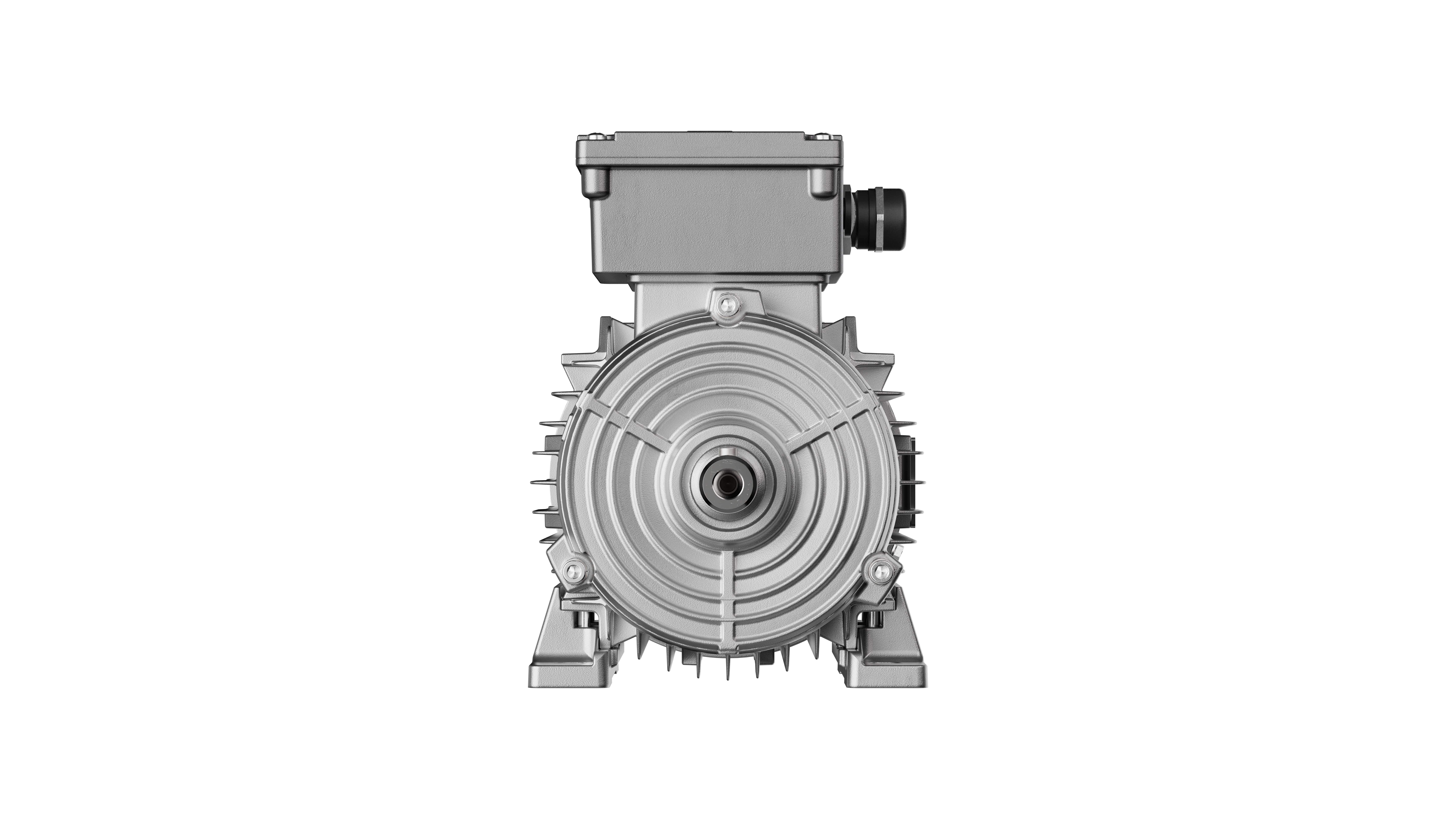

Technical overview
| Housing material | Aluminum (IE3) | Cast iron (IE3) | Cast iron (IE4) |
|---|---|---|---|
| Frame size | 80 – 160 | 80 – 2801) | 2802) – 355 |
| Rated power output | 0.55 – 18.5 kW | 0.55 – 55 kW | 75 – 315 kW |
| Poles | 2, 4, 6 | 2, 4, 6 | 2, 4, 6 |
| Rated voltage/frequency | 230 VΔ/400 VY, 400 VΔ/690 VY, 50 Hz | 230 VΔ/400 VY, 400 VΔ/690 VY, 50 Hz | 400 VΔ/690 VY, 50 Hz |
| Efficiency class | IE3 | IE3 | IE4 |
| Insulation | 155(F)/130(B) | 155(F)/130(B) | 155(F)/130(B) |
| Mounting type | B3, B5, V1, B35, B14, B343) | B3, B5, V1, B35, B14, B343) | B3, B5, V1, B35, B14, B343) |
| Protection degree | IP55 | IP55 | IP55 |
| Cooling method | IC411 | IC411 | IC411 |
| Art.No. (1st 7 positions) | 1LE0 323 | 1LE0 043 | 1LE8 044 |
1) Frame size 280 only with 6 poles
2) Frame size 280 only with 2 and 4 poles
3) B14 and B34 only up to frame size 160
For more information including available options:
Container delivery – ideal for distributors
FL motors are delivered in containers, which meets the needs of distributors with an own warehouse.
- Delivery to customer stock
- Simple and efficient order for large volumes
- Available support for optimal container filling
The advantages of simplicity
- Available in Innomotics Configurator
- Complete documentation online including options
- Innomotics sales supporting the container filling and order
- Certified to EU standards
- Efficiency class IE3 and IE4
- Inverter capable design
- Standardized service
- Easy maintenance
- Fast delivery of spare parts
- Worldwide Innomotics Service
Applications and Industries
Flow Line standard motors are specially tailored to pump, fan and conveyor belt applications. They are ideal for industries such as HVAC (heating, ventilation, air conditioning), water and wastewater, food and beverage, and material handling.
