Space-saving motor Innomotics HV C water-jacket-cooled
High voltage motor Innomotics HV C water-jacket-cooled
The Innomotics HV C water-jacket-cooled is optimized for space restricted applications due to its compact design. It reliably prevents dirty, aggressive, and salt-laden air from entering the motor while allowing the heat it dissipates to be recovered and used in the process. The design reduces weight and noise, improves vibrational behavior, and enables smoother operation and longer service life.
Benefits at a glance
Your advantages
- Valuable space is freed up for applications where space is restricted, e.g. onboard ships and offshore platforms
- Completely insensitive with respect to pollution, chemicals and salt mist
- Improved energy efficiency of the complete plant or system
- Lower transport and installation costs
- Extremely long lifetime as a result of the optimized temperature distribution
- Further optimized work conditions as a result of the very quiet operation
- Extremely reliable with a long service life
- Optimized vibration behavior for extended plant and system lifetimes
- Minimized cabling costs
- Increased flexibility in plants and systems and simplified installation as a result of the variable terminal box position
- Maximum system transparency and higher productivity by integrating into digital system concepts
Features
- Optimized cooling system for uniform and even cooling – where hotspots are reliably avoided
- Extremely high-power density for a space-saving design
- Low weight
- Integrated cable routing
- Vibration-optimized mounting foot design
- Predestined for energy-saving converter operation as a result of the optimized cooling system
- Extremely low maintenance water jacket cooling system
- Data matrix code so that mobile devices can quickly and simply access individual motor data
- Condition data can be analyzed using digital service concepts, also cloud based
Innomotics HV C water-jacket-cooled – Picture gallery

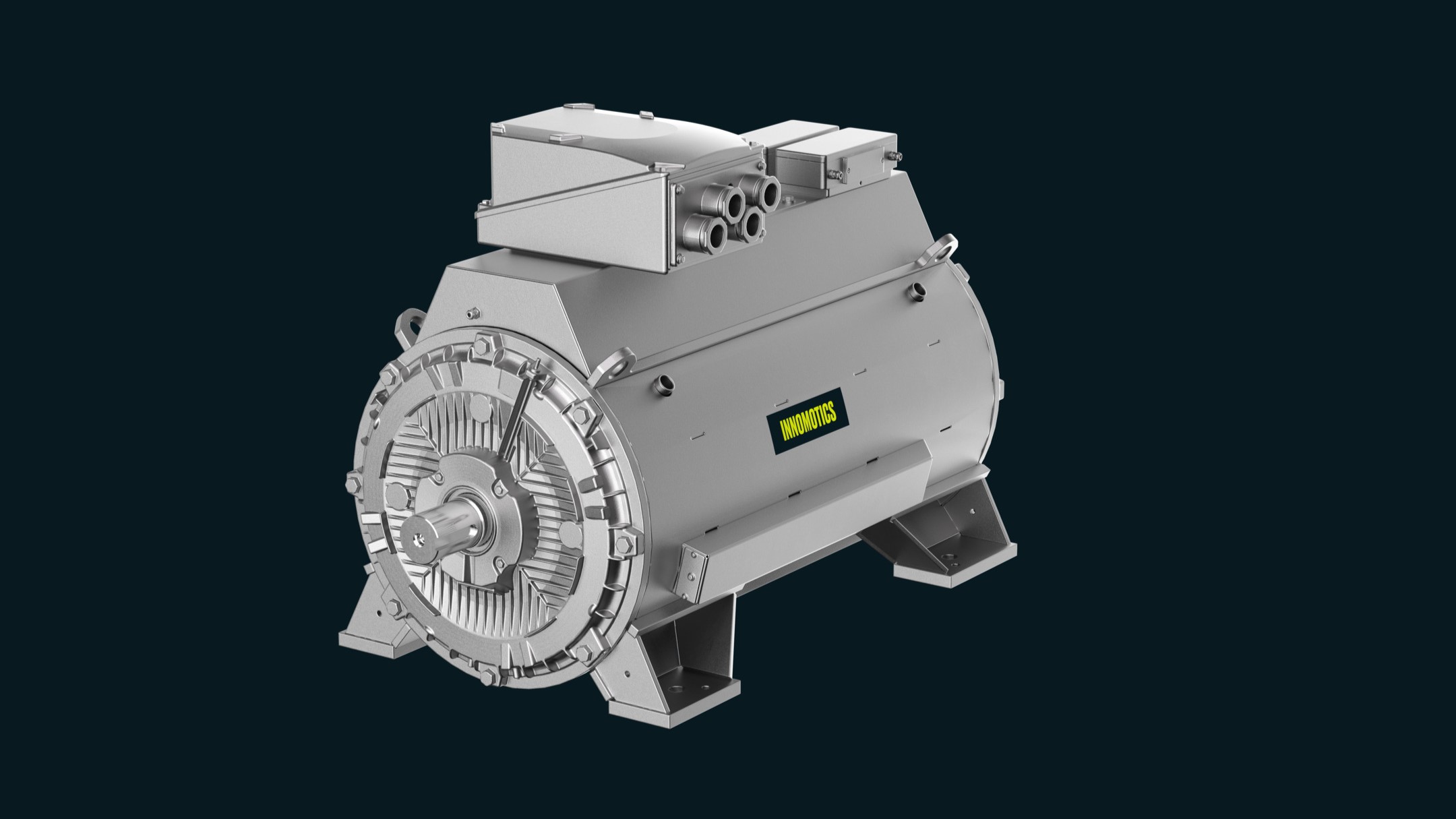

Innomotics HV C with innovated water-jacket-cooling
The innovative water-cooling system greatly improves heat dissipation and temperature distribution.
Technical data overview
| Type of motor | Asynchronous |
|---|---|
| Power range | up to 3.2 MW |
| Shaft height | 315 – 560 mm |
| No. of poles | 2 – 8 |
| Voltage range | 2 – 11 kV (also available as low voltage version) |
| Degree of protection | IP55 – IP66 |
| Cooling type | IC71 W |
| Operation mode | VSD / DOL |
| Explosion proof | – |
