Customer-specific motor Innomotics HV HP
Maximized plant availability

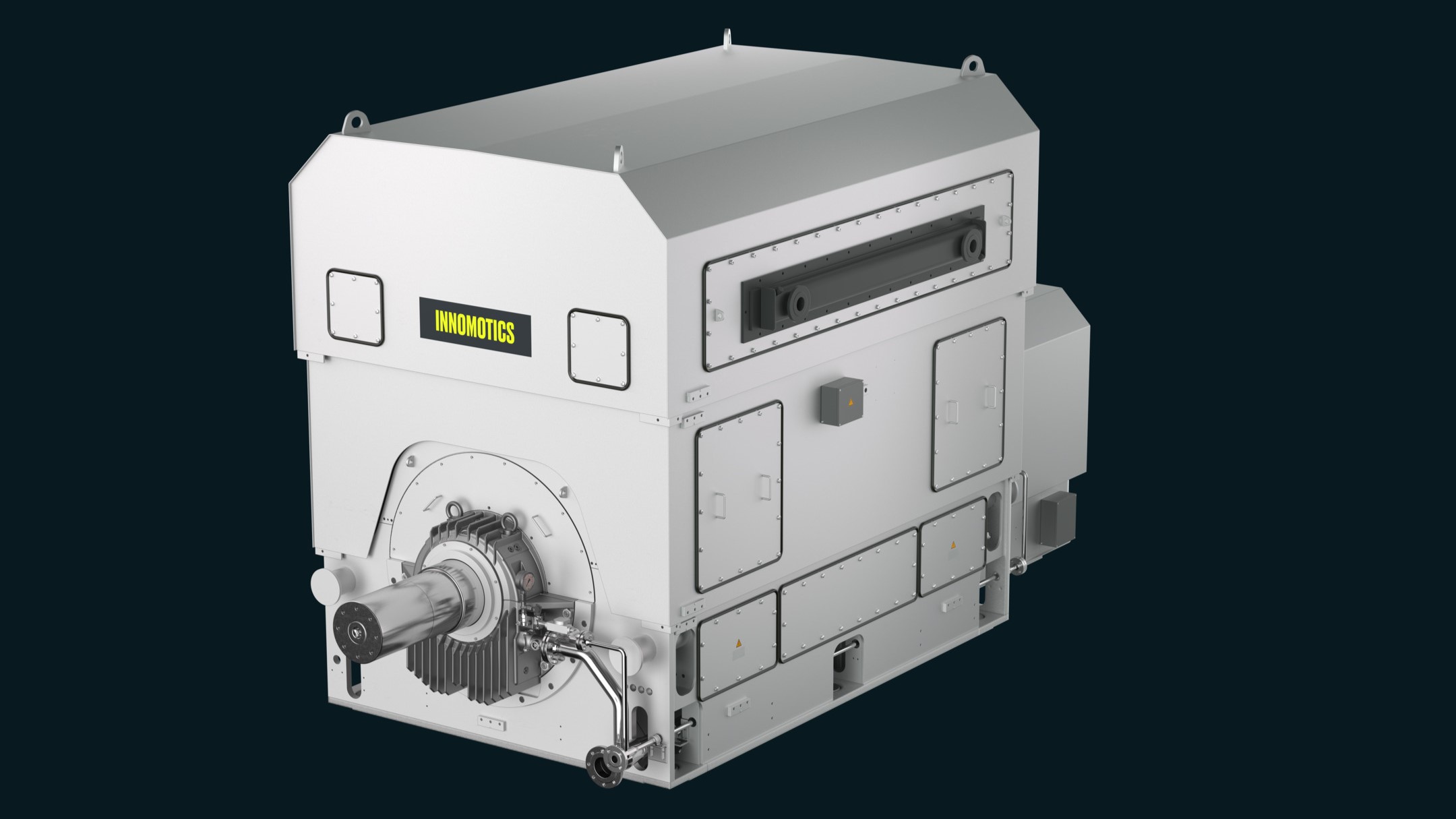

High voltage motor Innomotics HV HP
Innomotics HV HP is our flexible high voltage motor platform offering tailor-made solutions for a wide range of complex high-power applications. With more than 1000 machines in operation, the motor stands for highest reliability and lifetime even in extreme environments. Its optimized design combines highest energy efficiency, low vibrations, and simplified serviceability.
Benefits at a glance
Unique grade of modularity and adaptability
- Tailor-made solutions for a wide range of complex high-power applications
- Simplified serviceability by design
Optimized baseframe
High mechanical rigidity for low vibrations and low noise emissions
Efficiency rates of close to 99%
Highest efficiency values reducing customer total cost of ownership
Market leading reliability and life-time
- Highest reliability and life-time even in extreme environments
- More than 1000 machines in operation
Innomotics HV HP – Media gallery
Innomotics HV HP
Innomotics HV HP
Innomotics HV HP
Technical data overview
Asynchronous motor | Synchronous motor | |
|---|---|---|
| Power range | 1.8 - 38 MW | 8 - 70 MW |
| Speed | 130 - 3600 rpm | 130 - 1800 rpm |
| Rated voltages | 3 - 13.2 kV | 3 - 13.8 kV |
| Cooling type | IC 81W / IC 86W / IC 616 / IC 666 /IC01 / IC31 / WPII | IC 81W / IC 86W / IC 616 / IC 666 / IC01 / IC31 / WPII |
| Design | IM100x | IM100x |
| Efficiency | Up to 98.2 % | Up to 98.8 % |
