Innomotics HV Series A-compact-PLUS
Proven quality – focused on the essentials

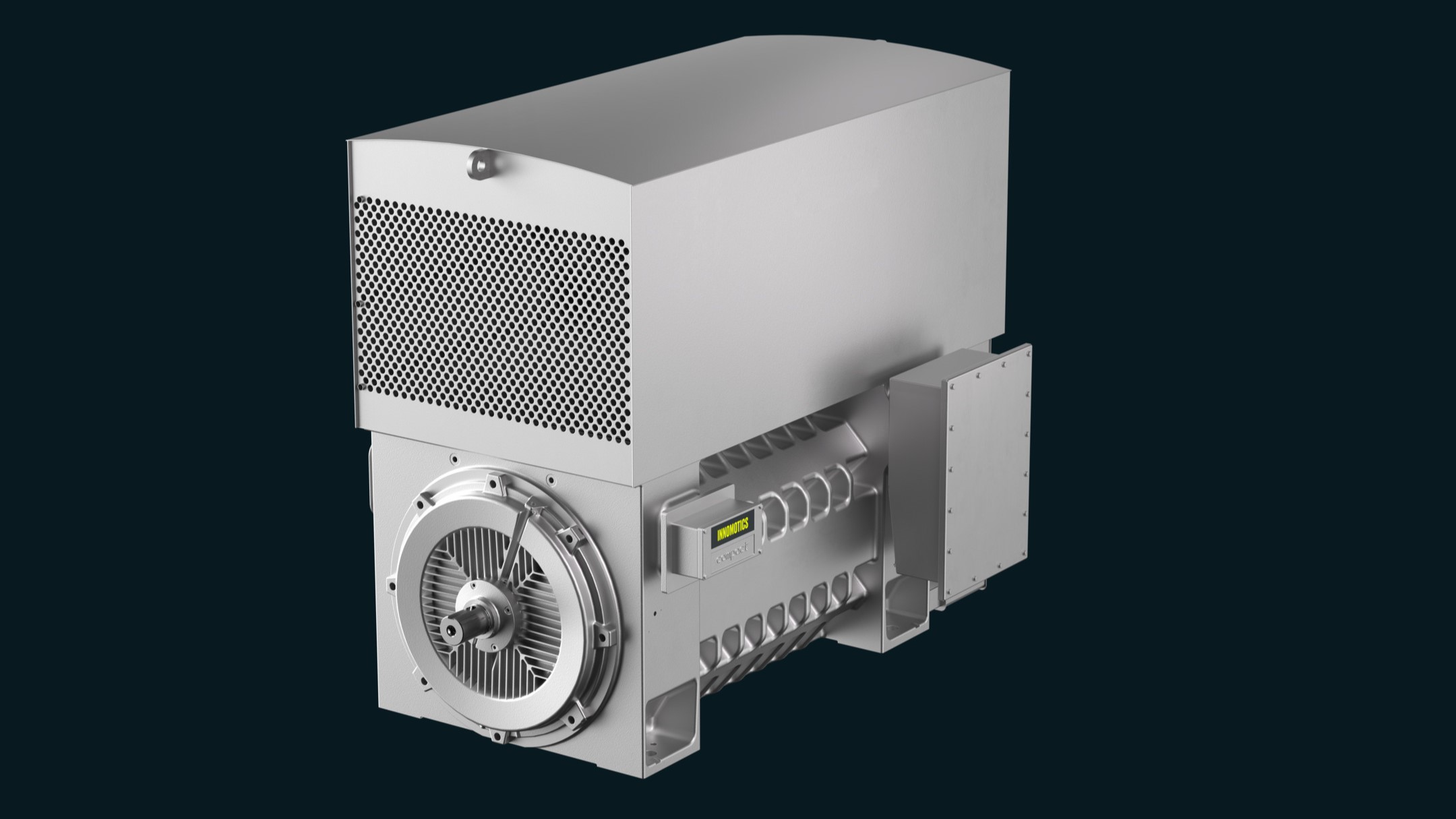

High voltage motor Innomotics HV Series A-compact-PLUS
The Innomotics HV Series A-compact-PLUS motors are compact, cost-efficient and very reliable. Their modular cooling concept and cast iron enclosure are ideal for high-power pump, fan and compressor applications – especially in desalination, power generation and water/wastewater industries.
Benefits at a glance
Focused on features essential for high-power, pumps and compressors
Low lifecycle cost by proven quality
Rugged design, low wear materials
Reliable and long service lifetime
Low space requirements, easy plant integration
Low space requirements, easy plant integration
Flexible regarding number of poles, voltage and cooling concept
Accurately fitting solutions for the individual application
High-quality coating systems
High availability even under rough environment conditions
Technical data overview
| Power range | 0.25 – 7.35 MW |
|---|---|
| Shaft height | 355 – 630 mm |
| Rated speeds | 750 – 3600 rpm |
| No. of poles | 2 – 16 |
| Rated voltages | up to 11 kV |
| Protection | IP23, IP24W, IP55 |
| Cooling type | IC 611, IC 616, IC 81 W, IC 86 W, IC 01 |
| Explosion protection | Zone 1: Ex pxb, Ex pzc Zone 2: Ex e |
