Motor Drive Systems

Compact, IES5-efficient motor drive package

Motor Drive Systems – Plug in. Power up.

Motor Drive Systems combine high efficiency motors with intelligent drive electronics to simplify installation and operation.

Our first featured solution in this family is the Motor Mounted Line – a compact, assembled motor drive package built for high performance in a small footprint.

The challenge of compact, energy efficient motor drive solutions

Applications such as pumps, fans, compressors and vacuum pumps today require motor drive solutions that fit into limited spaces without sacrificing performance.

Quick commissioning

No complex cabling. No long setup. Just fast installation.

Lower efficiency losses

Avoids mismatches between motor and drive.

Easy modernization

Upgrade existing systems without downtime or complications.

Motor Mounted Line – Compact, energy efficient performance

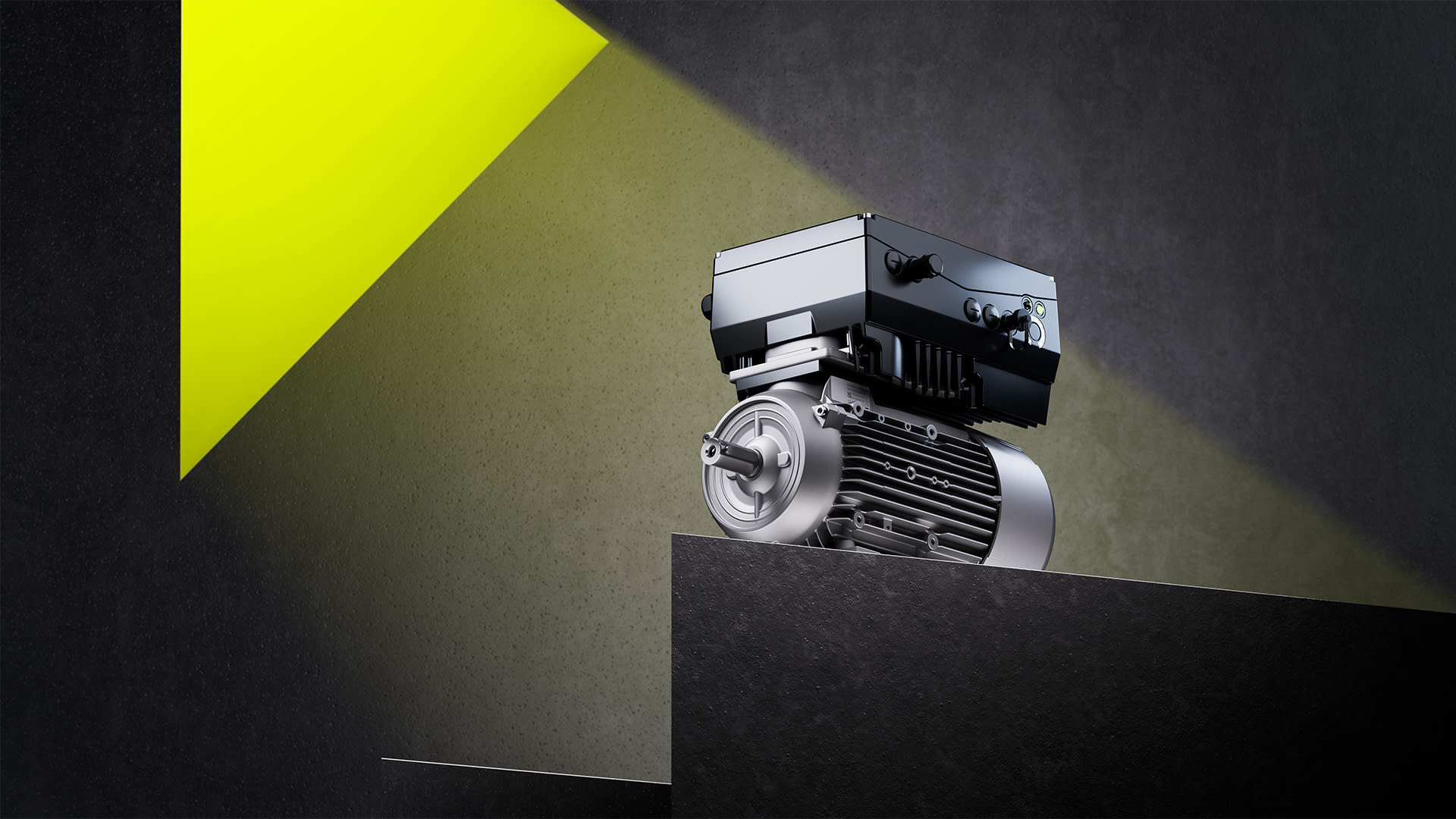

A fully integrated motor drive package designed for quick installation, high efficiency, and reliable operation – all in one by Innomotics.

Discover the future of motor drive technology with the Innomotics Motor Drive Systems, delivering power from 0.37 to 22 kW. Certified in the IES5 system efficiency class, our Motor Mounted Line combines perfectly aligned Permanent Magnet Motors and advanced mounted drives in a compact, plug and play package designed to optimize performance while minimizing energy use. Engineered for seamless upgrades and installation, this solution is built for Water and Wastewater, Food and Beverage, HVAC and Power Generation industries.

Why choose the Innomotics Motor Mounted Line?

Plug and play installation

Delivered preconfigured for fast installation without complex commissioning.

Compact and energy efficient

Certified IES5 system efficiency in a space‑saving design.

All-in-one reliability

Manufactured, tested and certified by Innomotics as a complete system.

Easy brownfield upgrades

Upgrade existing direct-on-line motors effortlessly without disruption.

Product specifications for our Motor Mounted Line

Key system data, cooling and protection, fieldbus and variant options for selection and installation.

Specifications	Key info
Rated power	0.37 – 22 kW
Motor frame sizes	71, 90, 132 mm
Rated speed	3000 rpm, 1500 rpm
Supply voltage and frequency	400-480 V, 50 or 60 Hz
Motor technology	Permanent Magnet Synchronous Motor
Efficiency classes	Motor efficiency class: IE5 (IEC/TS 60034-30-2) System efficiency class: IES5 (IEC 61800-9-2)
Cooling	Motor cooling: IC411, IC416 Drive cooling: Passive up to 7.5 kW; active (with fan) above 7.5 kW
Degree of protection	IP55 (others on request)

Focus industries for our Motor Mounted Line

Designed mainly for pumps, fans, compressors and vacuum pumps.

Water and Wastewater

Reliable solutions tailored for demanding pump systems.

Food and Beverage

Lightweight and compact design with flexible installation.

HVAC

Energy efficient drives optimized for ventilation and climate control.

Power Generation

Robust motor drive systems supporting auxiliary equipment.

Frequently Asked Questions

It combines a Permanent Magnet Motor with a mounted drive into one system, offering high power density, lightweight aluminum housing, and reaches the highest IES5 system efficiency class.

The motor-drive package comes fully mounted and commissioned – the motor data have been embedded into the converter already by Innomotics, so there is no need of any identification run. Only the control interface needs to be set. Thanks to the motor mounted design, the cabling effort is reduced and the product comes ready to use.

Yes, it can easily replace also existing motors running direct-on-line, as the converter is mounted on the motor and it does not need any cabinet or electrical room. This is making upgrades simple, fast and with a very short payback time.

Motor Mounted Line is supported by the powerful Innomotics online tools, like all the other products. In the Innomotics Configurator you can select the appropriate rating and configure options, including the converter options. You can generate fully documentation and proceed to order in the Shop. This product is also available in Innomotics Evaluate, where you can compare it to other solutions in terms of energy efficiency and payback time.

Key industries include Water and Wastewater, HVAC, Power Generation or Food and Beverage. Typical applications are pumps, fans, compressors, and vacuum pumps.

The mounted drive supports all common fieldbuses, including Modbus RTU, CANopen, PROFIBUS, PROFINET, Sercos, EtherCAT and Ethernet IP. Furthermore the Ethernet module enables also data transfer according to MQTT protocol.

The best is to use the Innomotics MD Connect PC tool, which is available free of charge and can be requested from Customer Service with a ticket. Do not forget to order the programming cable (option T52) for connecting to the drive. Alternatively, you can use the MMI control panel (option T22 or T51) when provided.

Like for any other Innomotics low voltage product, the Customer Service department is the single point of contact dealing with on-site support, warranty claims and spare parts provision.
