HV C air-cooled
Extremely reliable, low vibration levels and flexible.
Benefits at a glance
Your advantages
- Less space required and simpler integration into plants and systems as a result of the extremely compact design
- Very safe and reliable – even in extreme environments
- Extremely long lifetime as a result of the optimized temperature distribution
- Minimized noise levels reduce noise attenuation measures/costs
- Low weight simplifies handling and transport
- Extremely low vibration operation ensures a long plant/system lifetime
- Increased flexibility in plants and systems and simplified installation as a result of the variable terminal box position
- Better protection for cabling
- Maximum plant & system transparency and boosted productivity by integrating into digital system concepts using SIDRIVE IQ
Features
- Cooling system that combines the inner cooling circuit with tube cooling
- Extremely high-power density that sets standards in the market
- Improved cooling – where hotspots are reliably avoided
- Vibration-optimized design of the motor mounting feet
- Very compact, service-optimized terminal box with a multitude of possible positions
- Cable routing inside the motor
- Data Matrix Code for fast, simple access to individual motor data from mobile devices
- Status data can be analyzed via SIDRIVE IQ as well as digital service concepts – also cloud-based
HV C air-cooled – Picture gallery

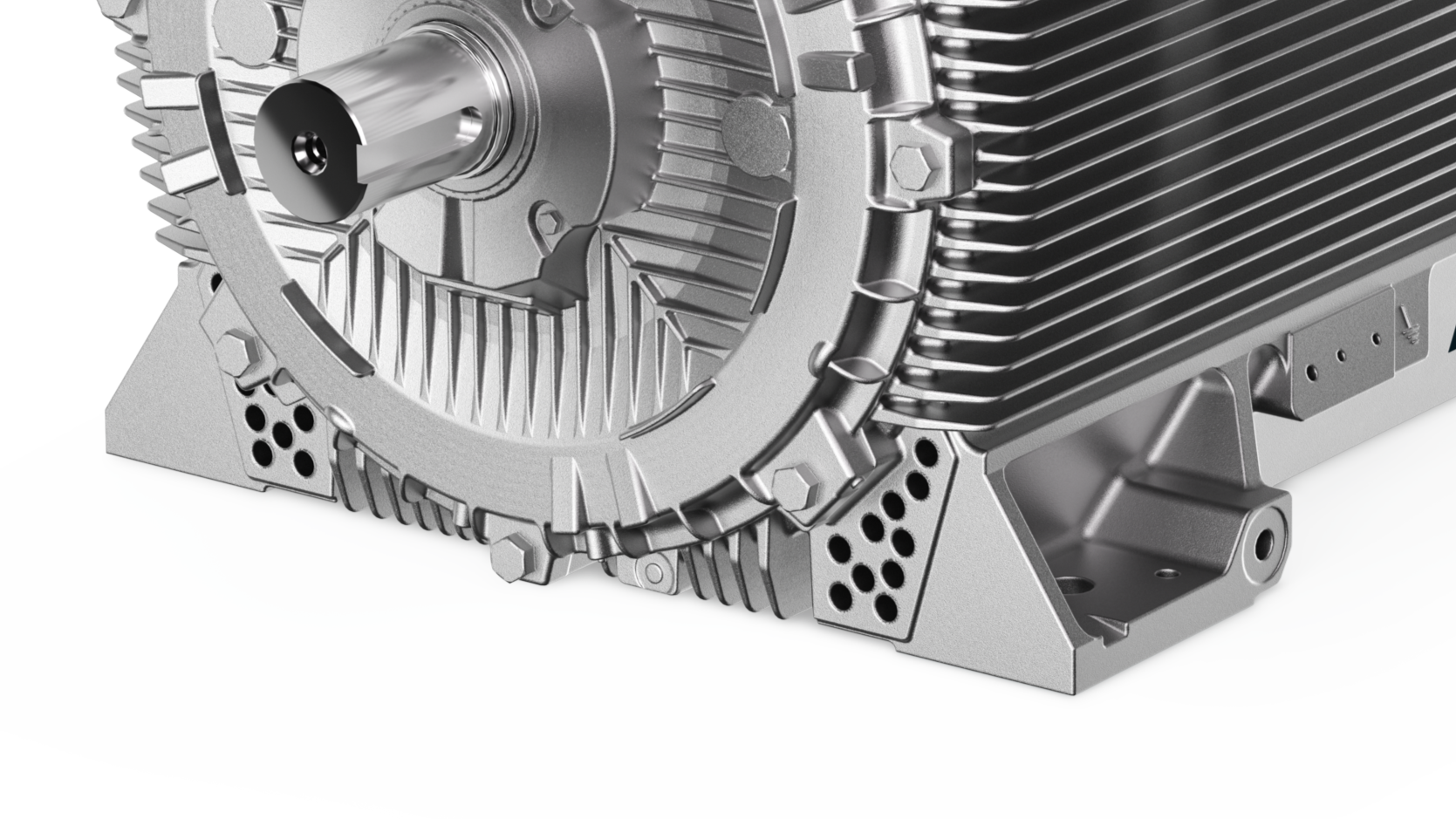

The revolutionary cooling system for air-cooled versions of Innomotics HV C combines a fin-cooled enclosure with integrated tube cooling.

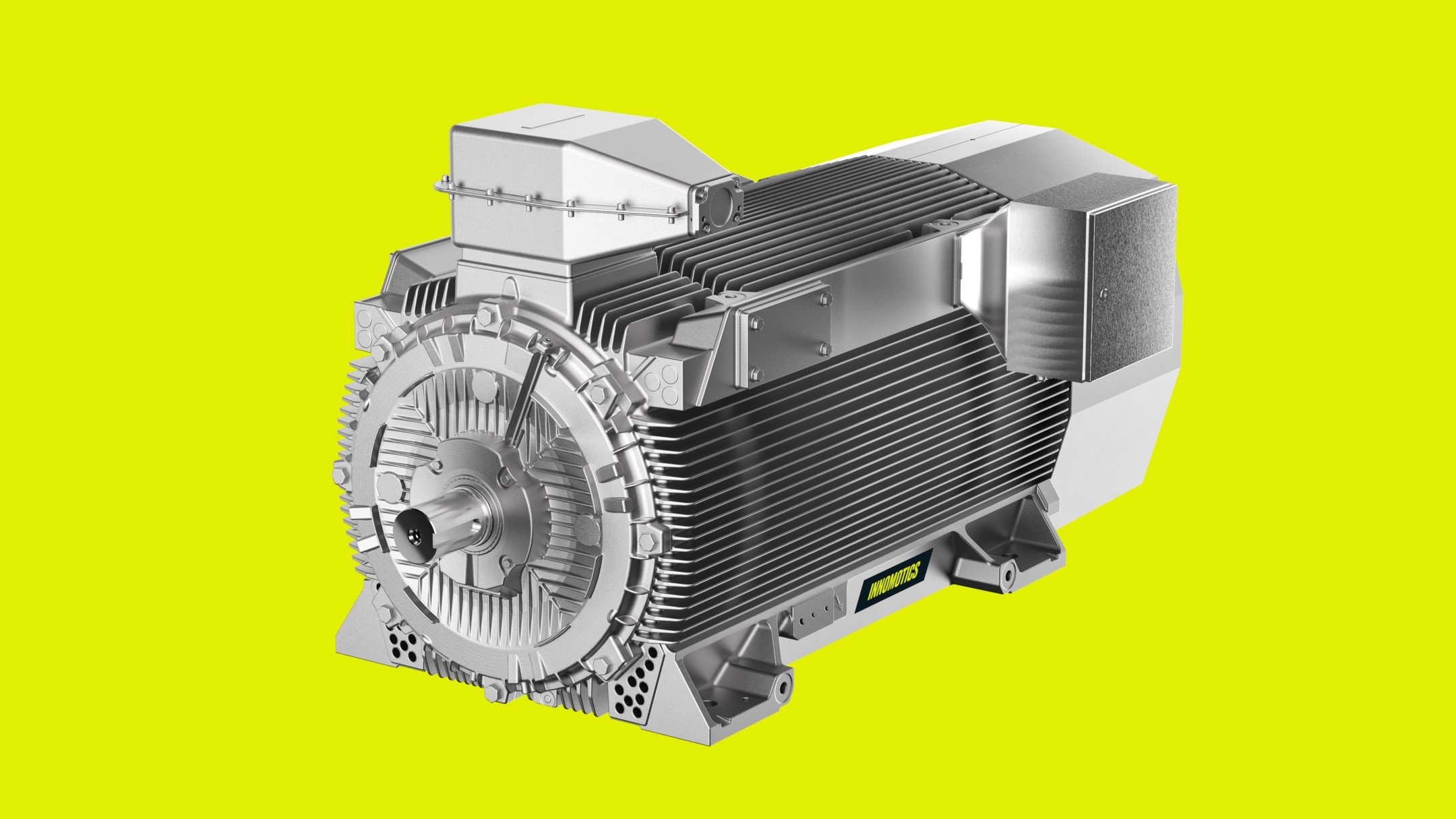

A unique power density, extremely reliable operation, highest degree of flexibility and optimized vibration behavior are the result of this sophisticated and proven SIMOTICS HV C design.
With an optional connector box, Innomotics HV C can be quickly and simply integrated into digital enterprises.
Technical data overview
| Type of motor | Asynchronous |
|---|---|
| Power range | Up to 2.2 MW |
| Shaft heights | 400 – 560 mm |
| Number of poles | 2 – 8 |
| Rated voltage | 380 – 690 V (also available in high voltage version) |
| Degree of protection | IP55 – IP66 |
| Cooling method | IC411, IC416 |
| Operating mode | VSD |
| Explosion protection | Ex ec, Ex t |
