HV C flameproof
Unbeatably compact – extremely reliable
Non-standard motor Innomotics HV C flameproof
Innomotics HV C flameproof is an ultra-compact, low voltage motor designed for maximum safety and reliable operation in highly explosive environments. Its revolutionary cooling concept combines the well-established rib cooling with tube cooling elements. Its rugged design ensures reliable performance, even in harsh conditions, with optimized vibration behavior.
Benefits at a glance
Your advantages
- Less space required and simpler integration into plants and systems as a result of the extremely compact design
- Very safe and reliable, even in highly explosive, extreme environments
- Extremely long lifetime as a result of the optimized temperature distribution
- Minimized noise levels reduce noise attenuation measures/costs
- Low weight simplifies handling and transport
- Optimized vibration behavior for long plant and system lifetimes
- Maximum system transparency and higher productivity by integrating into digital system concepts
Features
- Revolutionary cooling system, which combines the inner cooling circuit with cooling tubes
- Extremely high-power density, which sets the benchmark in the flameproof motor market
- Flameproof enclosure in Ex db and Ex db eb predestined for Zone 1
- Extremely compact flameproof terminal box
- Data matrix code so that mobile devices can quickly and simply access individual motor data
- Condition data can be analyzed using digital service concepts, also cloud based
- Engineered based on international standards, e.g. ATEX, CQST, EAC
HV C flameproof – Picture gallery

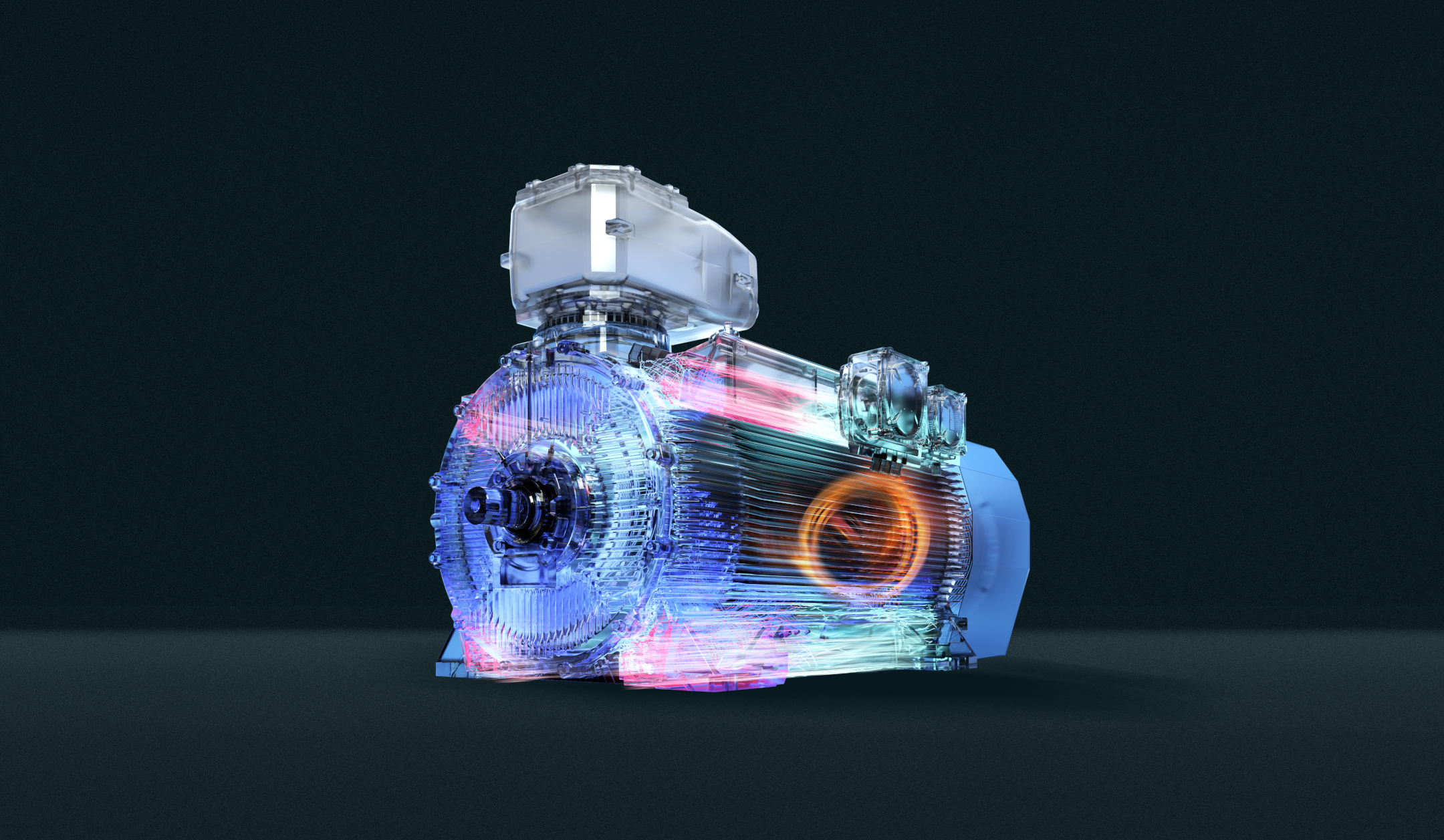

The revolutionary cooling system combines a fin-cooled housing with integrated cooling pipes.
The cooling concept with its improved heat dissipation allows an extremely high power density and a much lower thermal aging of the materials.
Technical data overview
| Power range | 1 – 2 MW |
|---|---|
| Shaft height | 400 – 560 mm |
| No. of poles | 2 – 8 |
| Voltage range | 380 – 690 V (also available in high voltage version) |
| Degree of protection | IP55 – IP66 |
| Cooling type | IC411, IC416 |
| Operation mode | VSD / DOL |
| Explosion proof | Zone 1, II 2G Ex db IIB T4 Gb, II 2G Ex db IIC T4 Gb |
