Innomotics High Voltage Motors & Generators

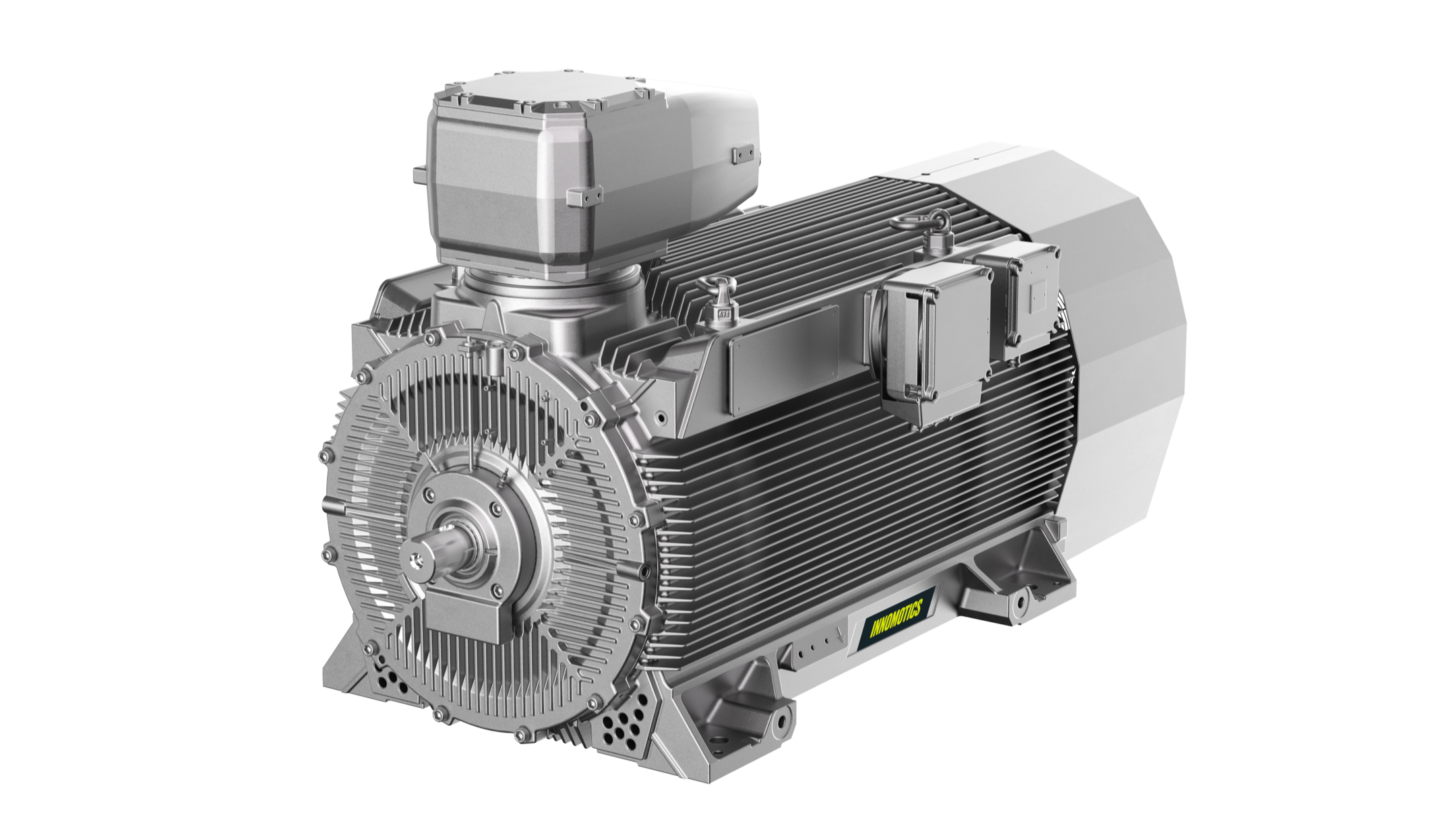

Compact motors designed for standard and extreme protection requirements

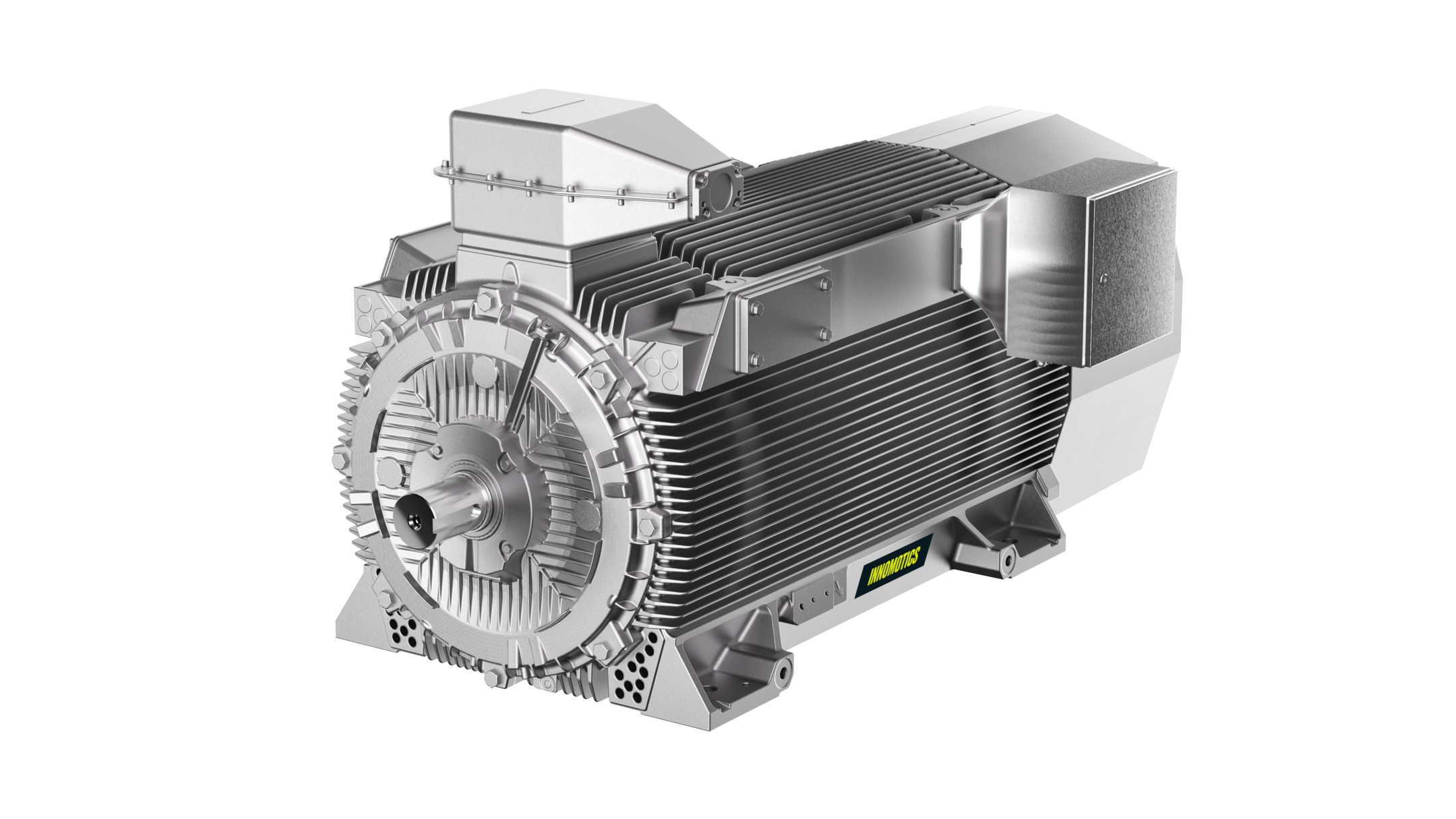

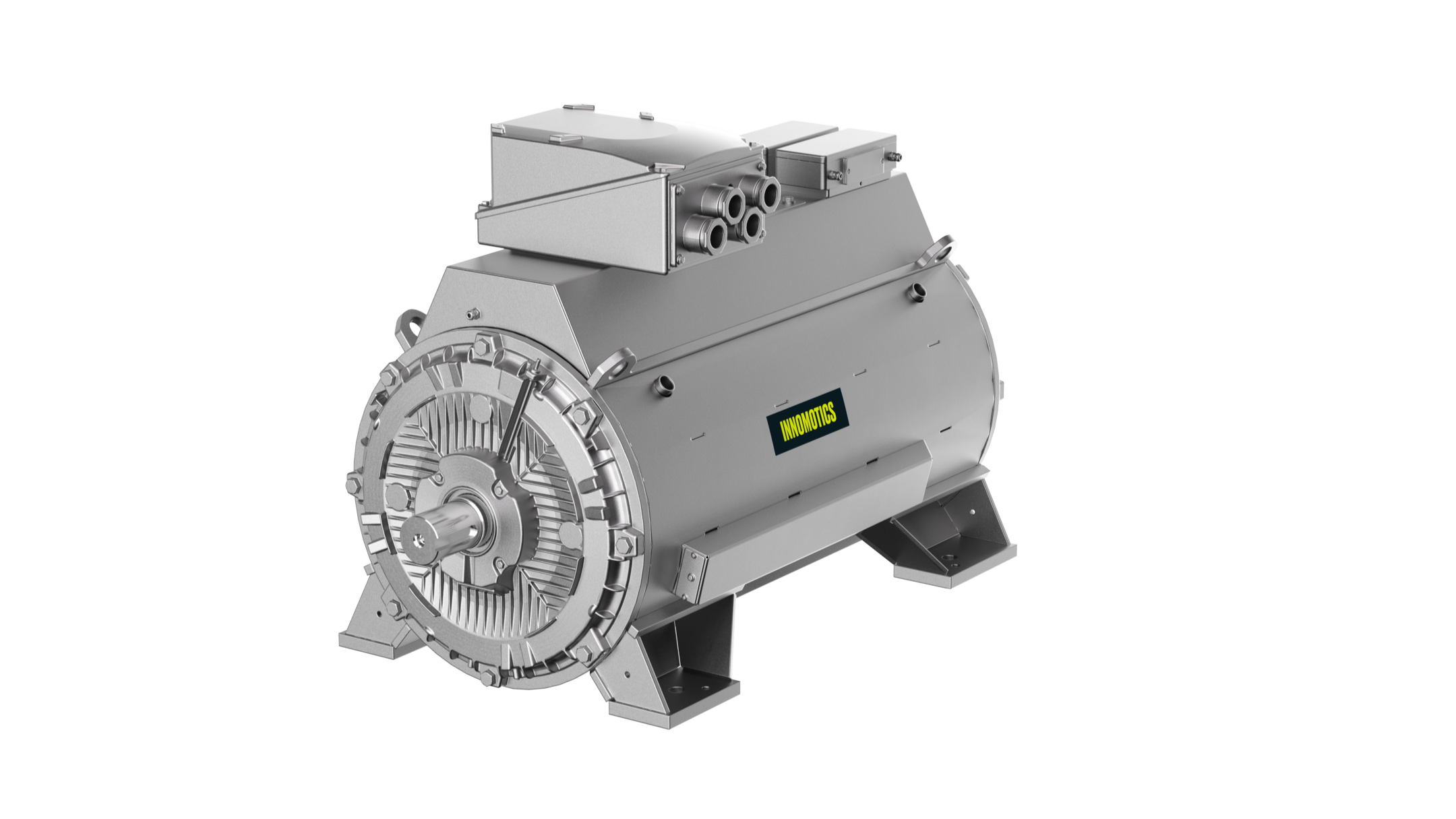

The high voltage compact IEC motors featuring asynchronous technology cover a power range from 150 kW to 7.5 MW, in all relevant cooling types for low installation heights – in addition to classic fin cooling, also available with tube cooling and water jacket cooling. With these versions, they seamlessly cover the corresponding power and application ranges – from basic or standard up to sector-specific applications. They can also address extreme requirements with degree of protection up to IP66, in special designs up to IP68 and all types of explosion protection. The compact motors sets themselves apart as a result of its high-power density and compact design that applies across the board. Further, as a result of their outstanding reliability, as well as low maintenance, they boost plant and system availability and reduce energy costs based on their high efficiencies.

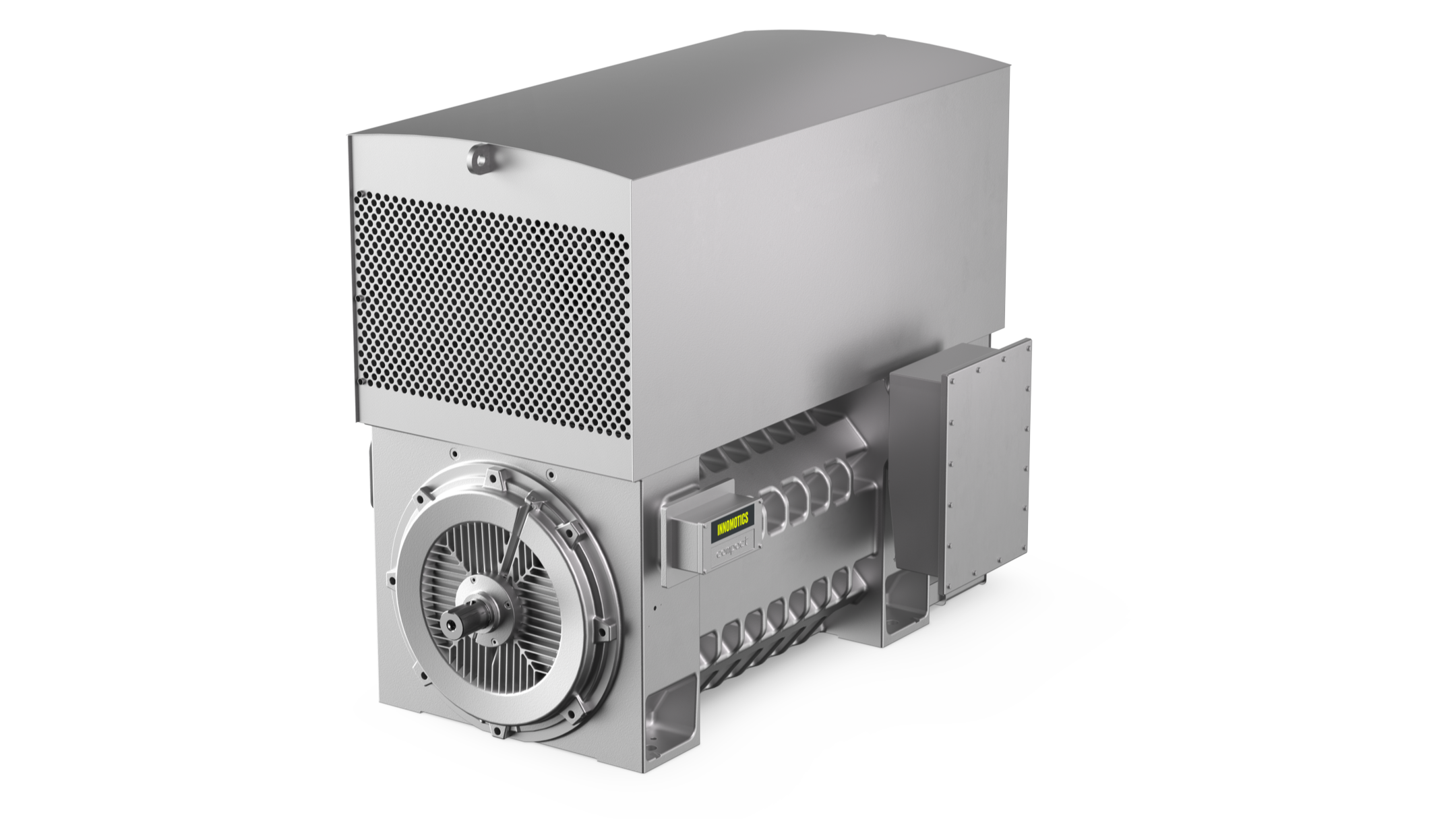

High voltage modular motors offer a power range up to 29MW and can be used in many industries such as Oil & Gas, water & wastewater, power generation and marine

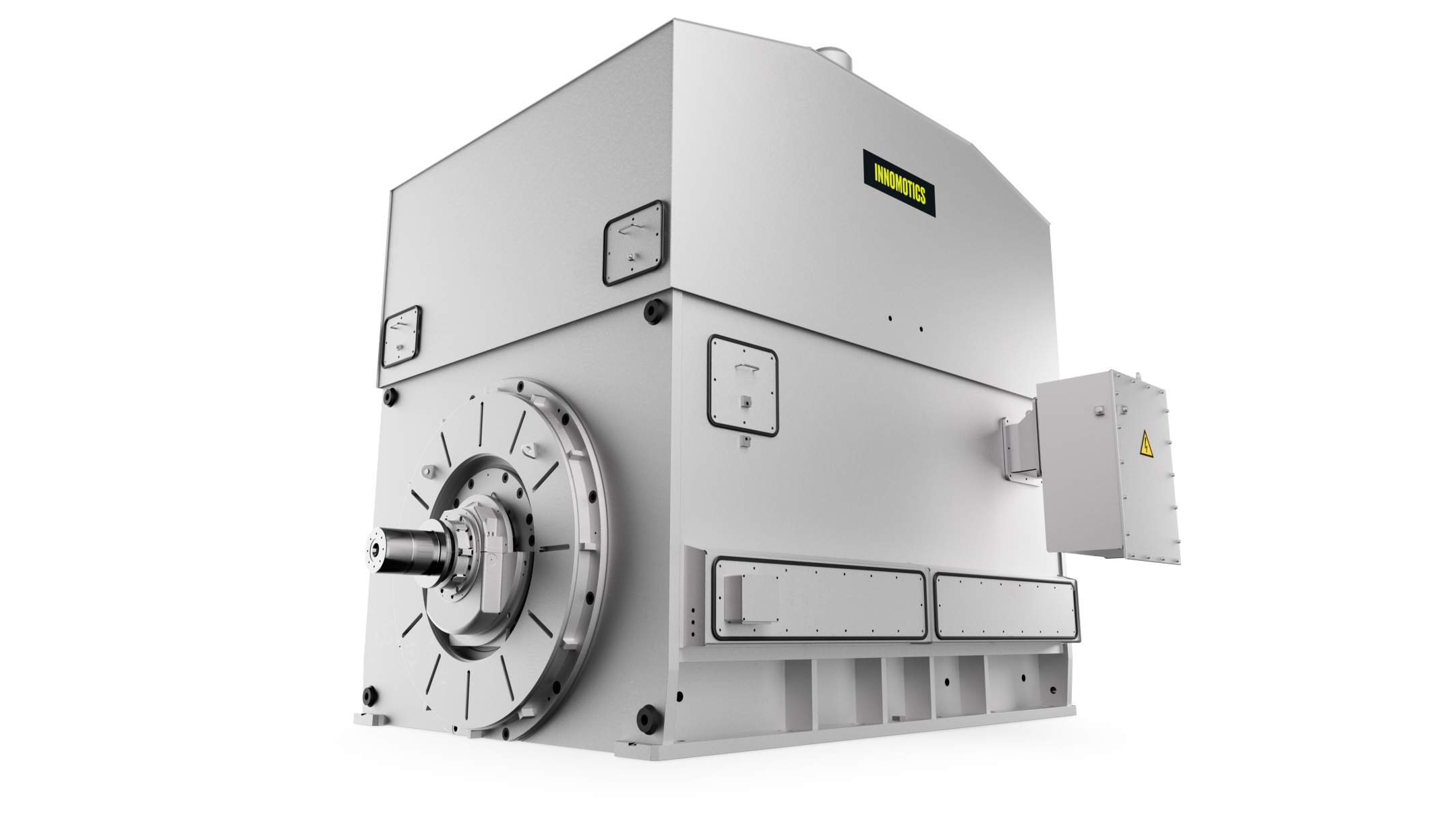

The modular cooling concept enables various air-to-air and air-to-water designs and results in highest power density for low space requirements and easiest plant integration. Furthermore, our modular motors offer high load capacity, smoothest vibration behavior, low noise values, as well as being weight-optimized for exact application needs. The motors can be quickly and simply selected and configured using standard engineering tools, but also engineered to fulfill specific customer requirements. It goes without saying that they have the highest reliability even under extreme conditions, coupled with a long service life, low maintenance and high-efficiency values up to 98%.

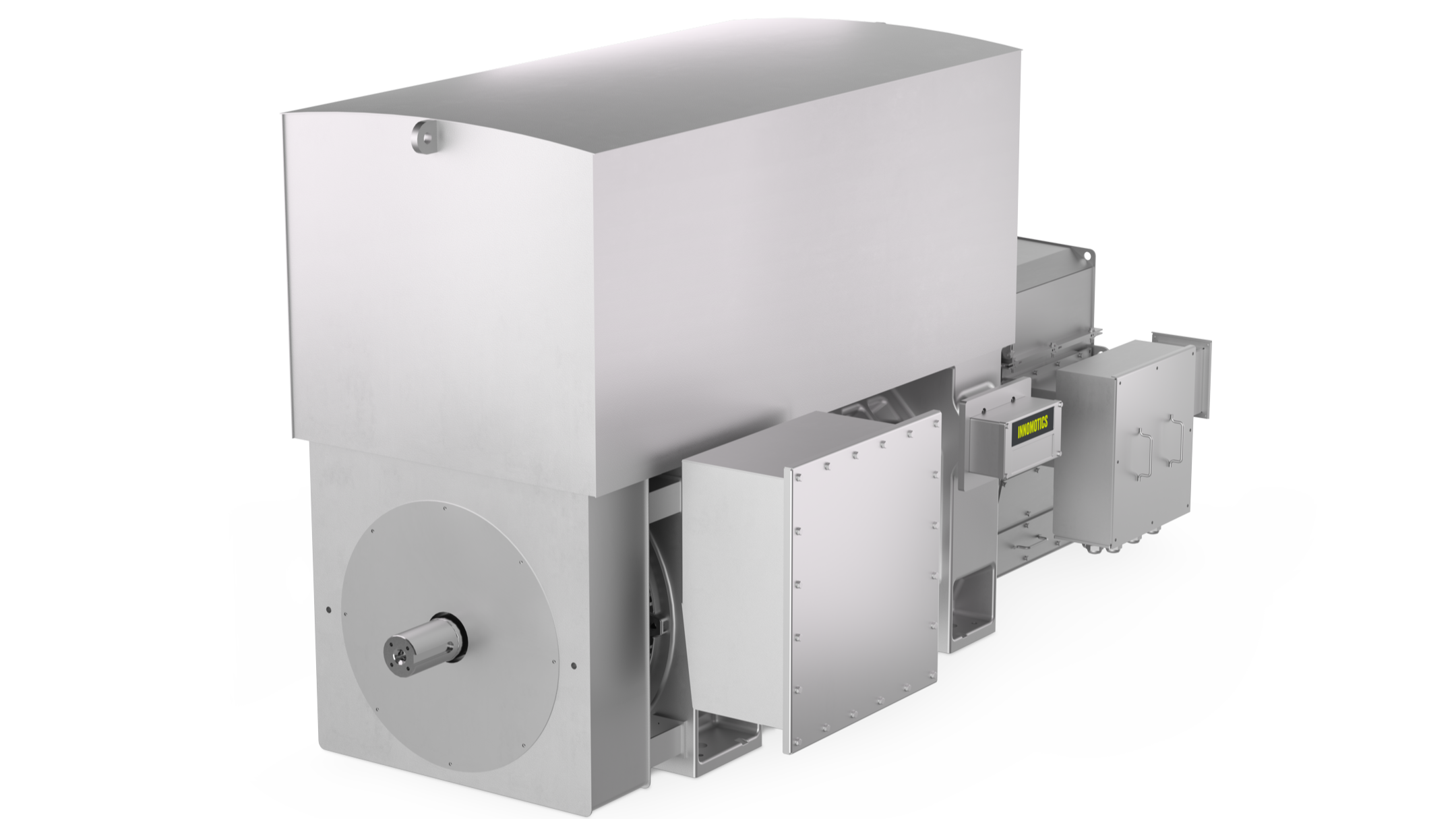

Innomotics HV HP – the universal platform for highest power ratings up to 70 MW

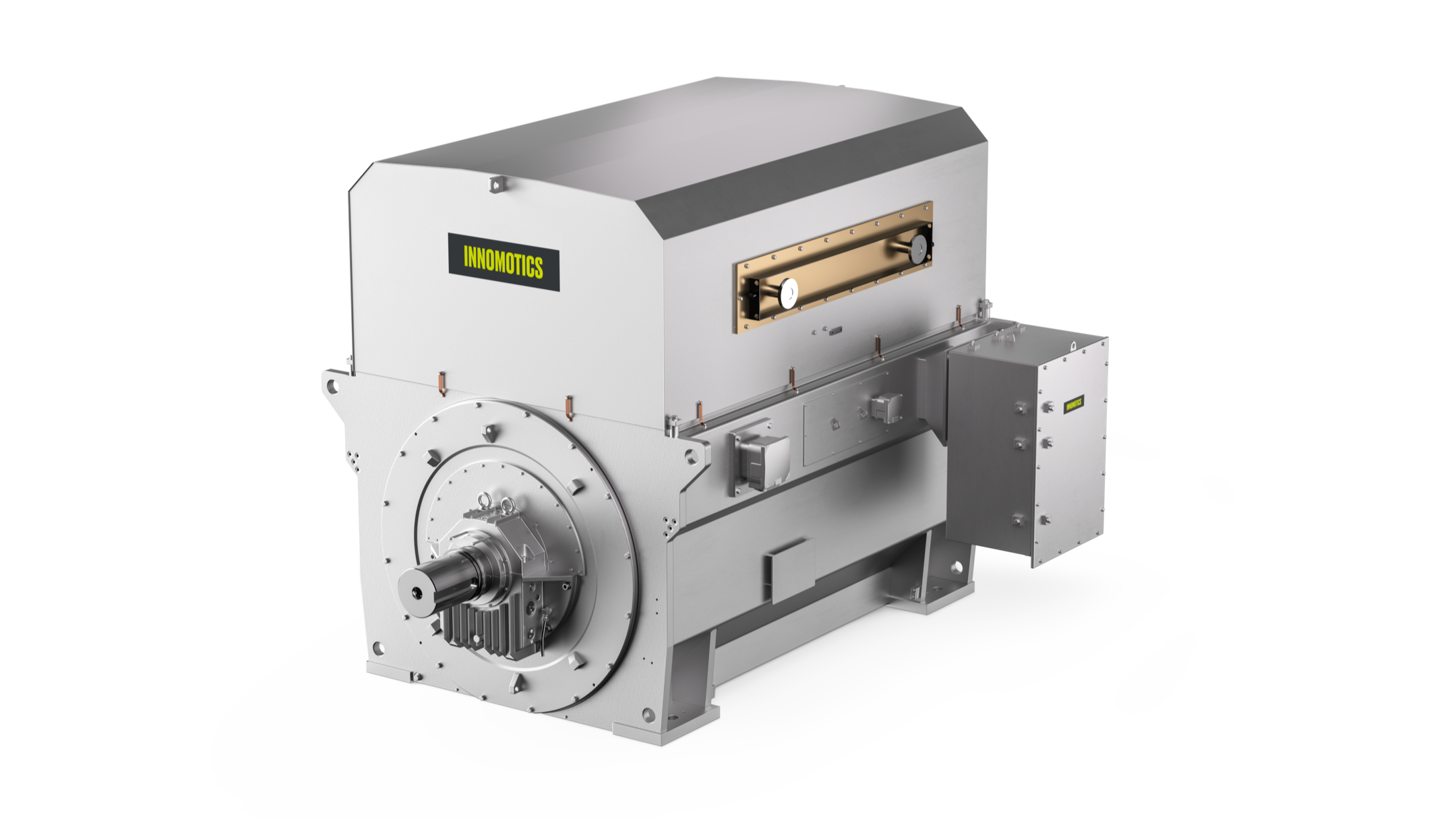

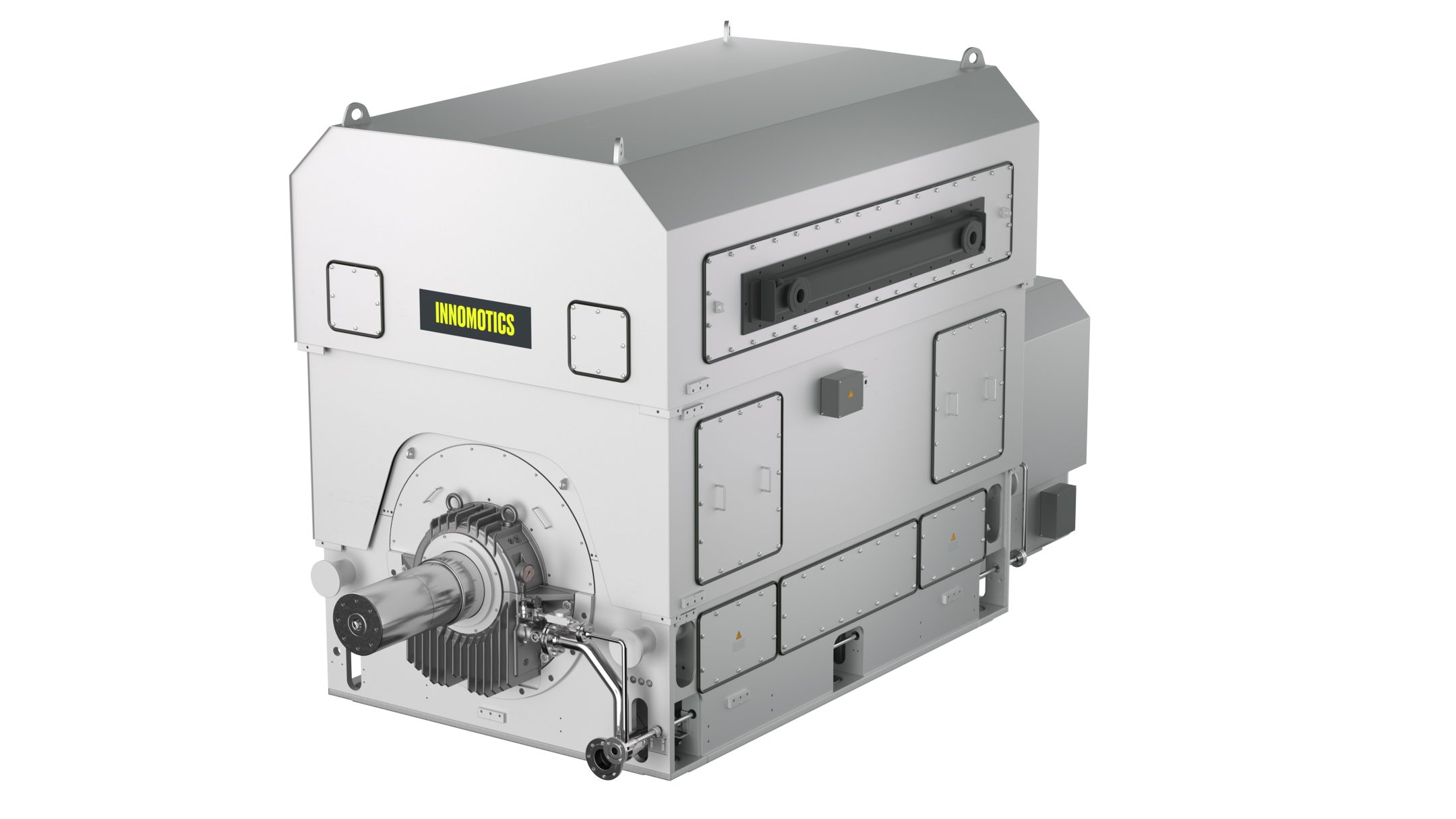

The Innomotics HV HP impresses with a flexible platform concept with various rotor types and a modular cooling to fit individual application conditions for customer specific construction. These motors cover a wide range of options and modular cooling concepts, e.g. air/air, air/water heat exchangers, and open cooling. Futhermore, heavy starting conditions (DOL-operation or VSD operation) and high-power ratings are realized. Especially the synchronous motors are characterized by a high utilization and an efficiency rates close to 99%. The standard type is designed according to IEC and standards like NEMA / CSA / API / CCC / EAC are also available.

Motors designed for the specific requirements of more complex or advanced applications

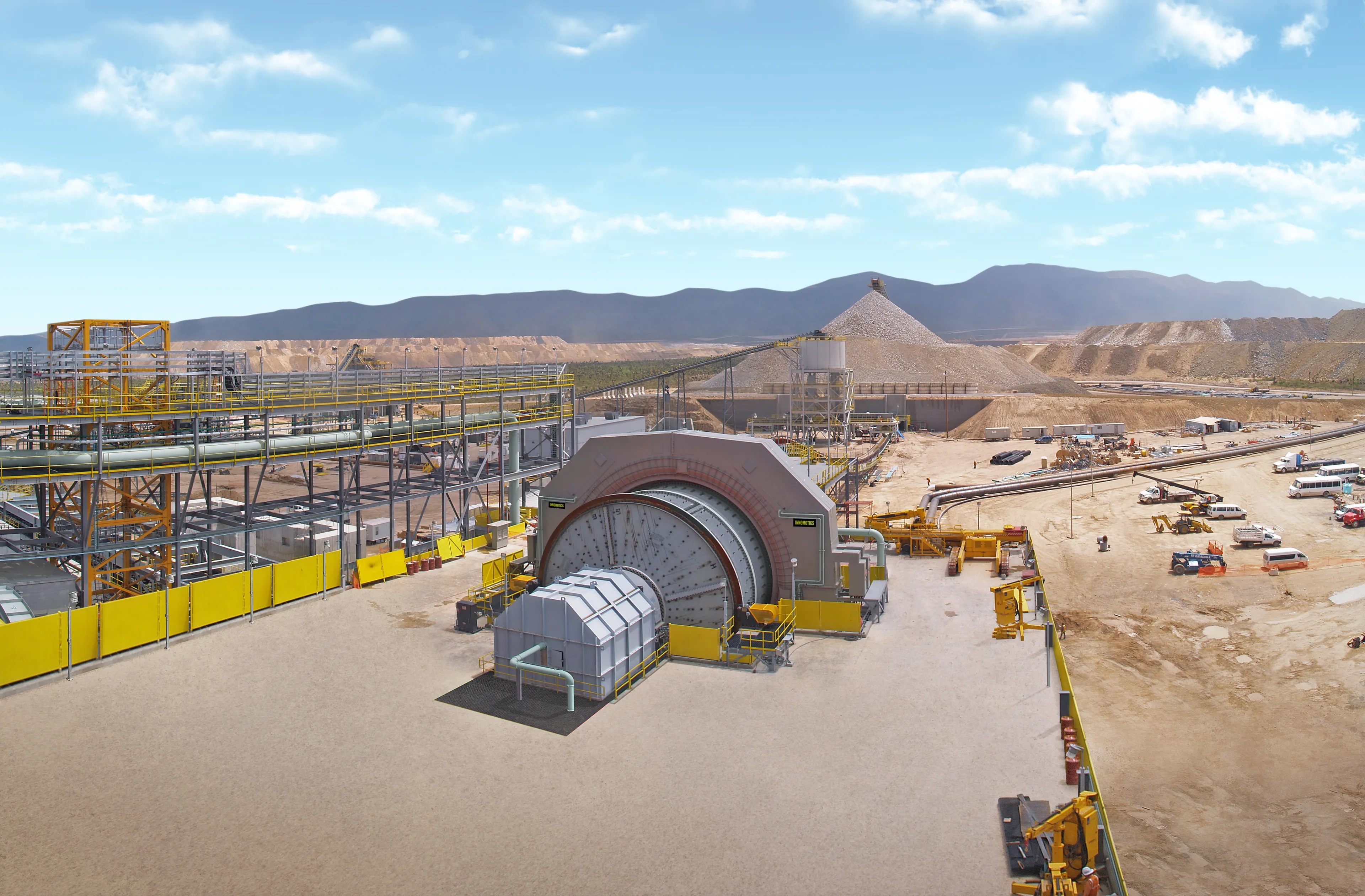

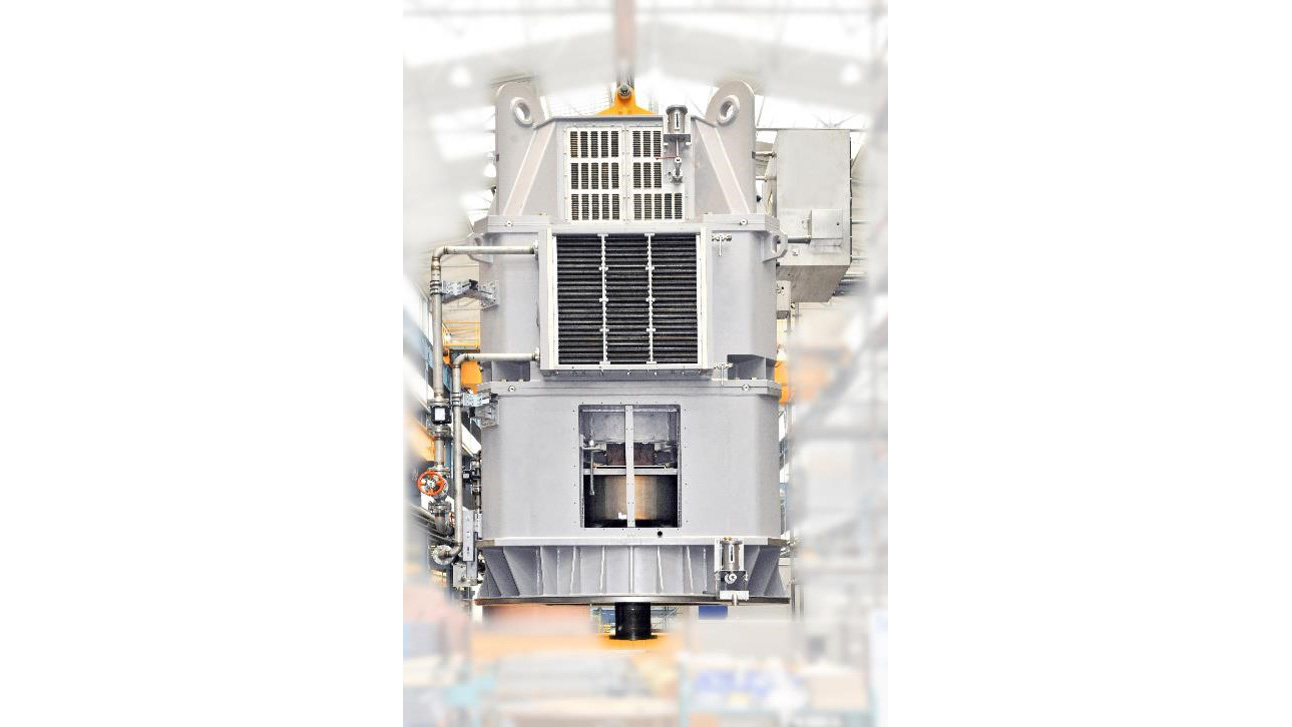

With a power rating of up to greater than 100 MW (or torques up to greater than 40,000 kNm), the specialized high voltage motors are designed to suit the specific requirements of a complex application or to maximize the performance and implementation with an application drive system concept. Innomotics expertise in various industries and applications has equipped us to identify situations where we can provide a design specifically optimized for a challenging application or where the requirements of the application exceed the normal capabilities of our main motor designs. As a long-standing supplier with a very large worldwide installed base, we serve industries like Oil & Gas, Mining, Metals, Chemicals and Energy. Wherever you need a large, specialized motor, we will in most cases be a partner of choice.

Do you have any questions? Our experts will be glad to help you.

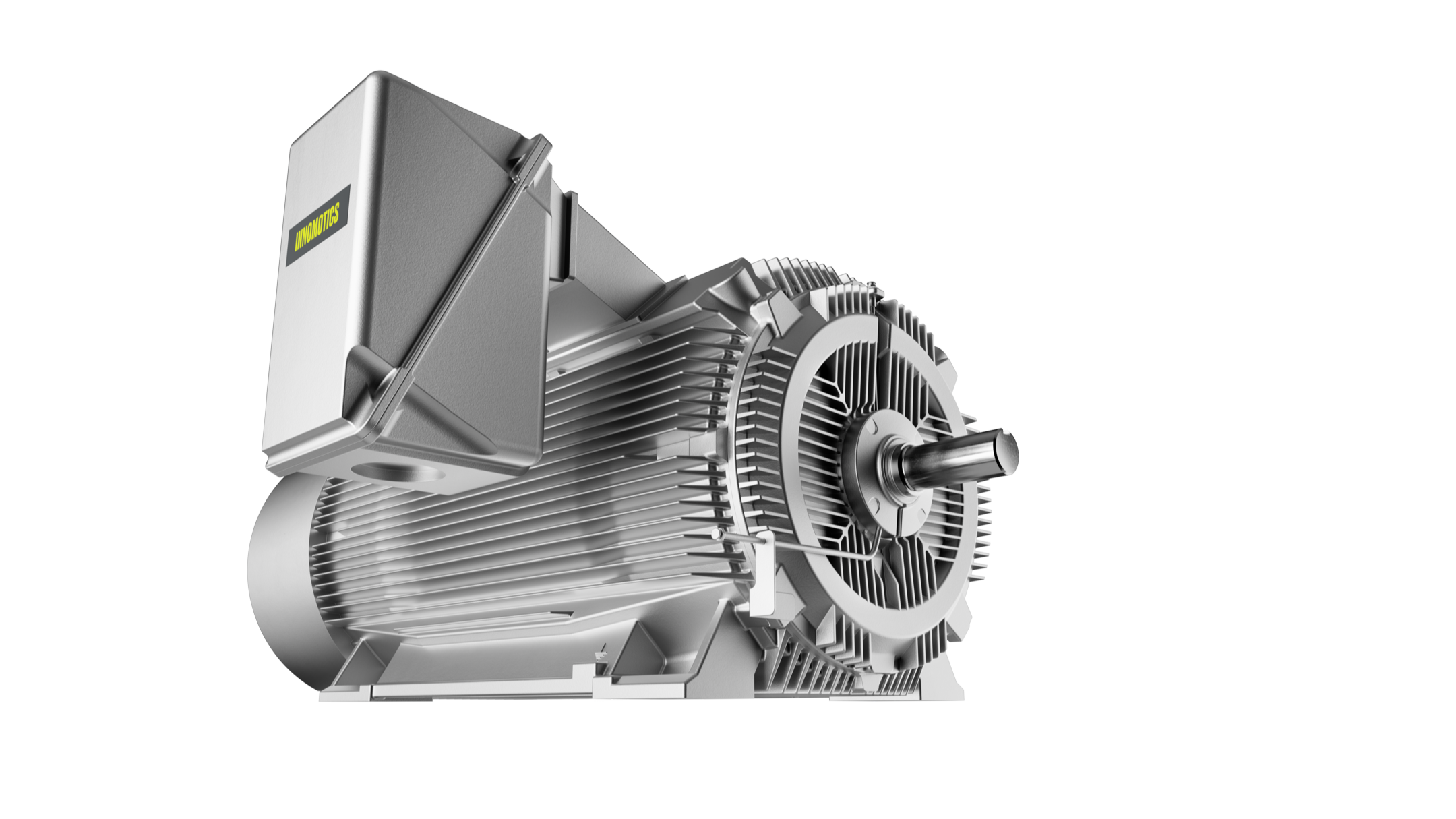

High voltage motors that exceed NEMA standard power ratings

For over 120 years, Siemens have earned a reputation for high performance, low maintenance, and long service life in the world’s most demanding applications.
