Modular Motors

Master demanding applications

Need a Modular Motor that adapts to your needs?

Every application is different. That’s why your motor should adapt to your requirements. Our Modular Motors deliver customizable performance up to 29 MW – based on a common platform. So you always have the right motor to master your individual challenge.

New requirements. New technologies. Higher expectations. Your motor system needs to adapt – while staying reliable and high-performing. With our Modular Motors, you’re ready for what’s next.

Customizable to your requirements

Our motors adapt to your needs and deliver high power density in minimal space. Choose from various air-to-air or air-to-water configurations. And benefit from easy system integration.

Based on proven design standards

Standardized components. Proven worldwide. Our motors deliver reliable performance – even in demanding environments. Easy maintenance helps you keep downtime low and stay productive.

Suitable for many applications and industries

Reliable performance for demanding applications. Our motors deliver up to 29 MW for various industries such as Oil and Gas or marine. Built robust, they keep running longer – even under harsh operating conditions.

Discover our Modular Motor portfolio in detail

Your applications require flexible and adaptable motor designs. Our Modular Motors adapt to various application requirements up to 29 MW. 

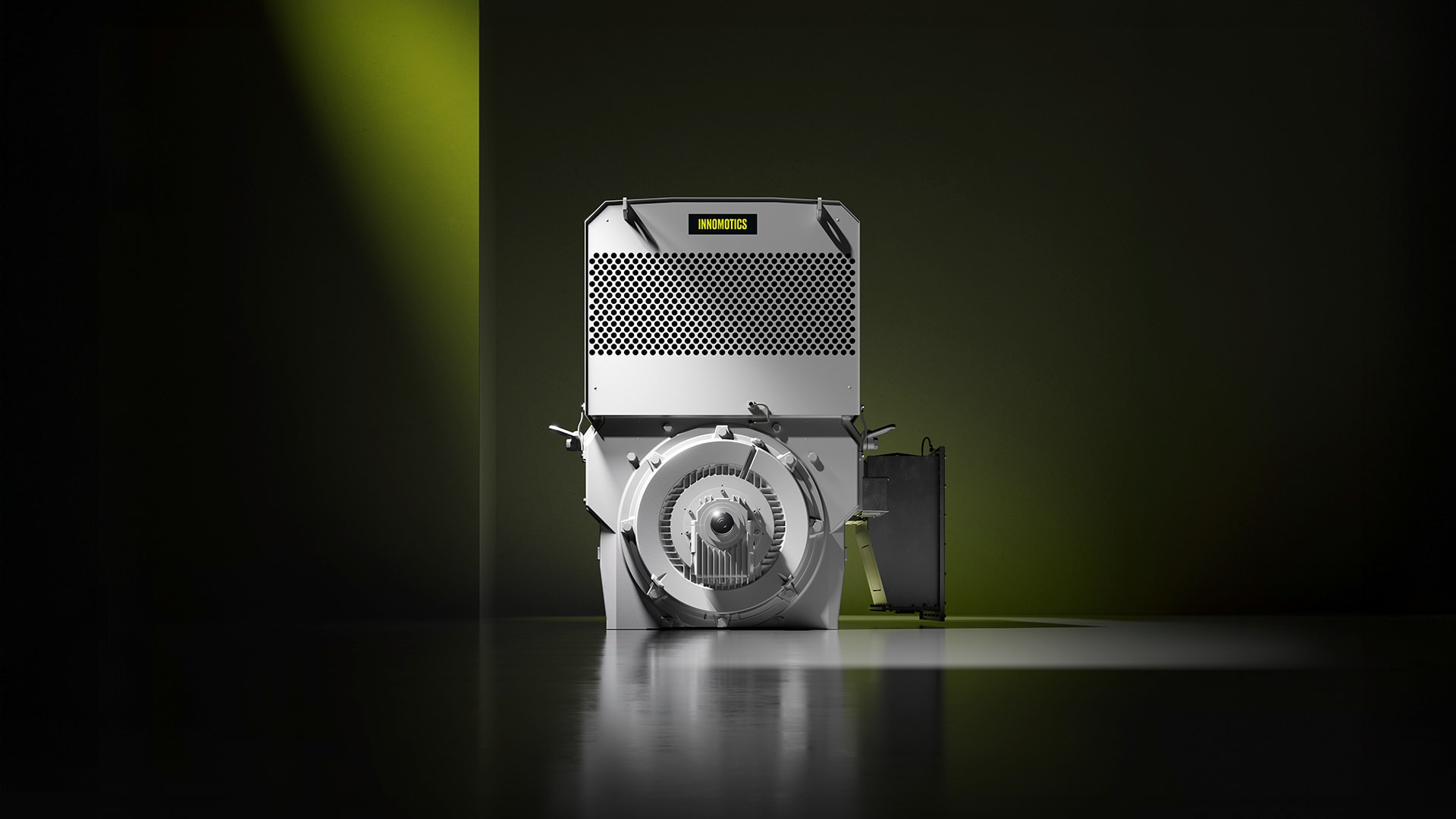

HV M

Type of motor: Asynchronous
Power range: up to 29 MW
Voltage range: 0.38 – 13.8 kV
Shaft height:
355 up to 560 mm: cast iron enclosure (welded steel on request)
630 up to 900 mm: welded steel enclosure
Number of poles: 2 – 12 poles (other pole numbers on request)
Operating mode: VSD / DOL

Learn more

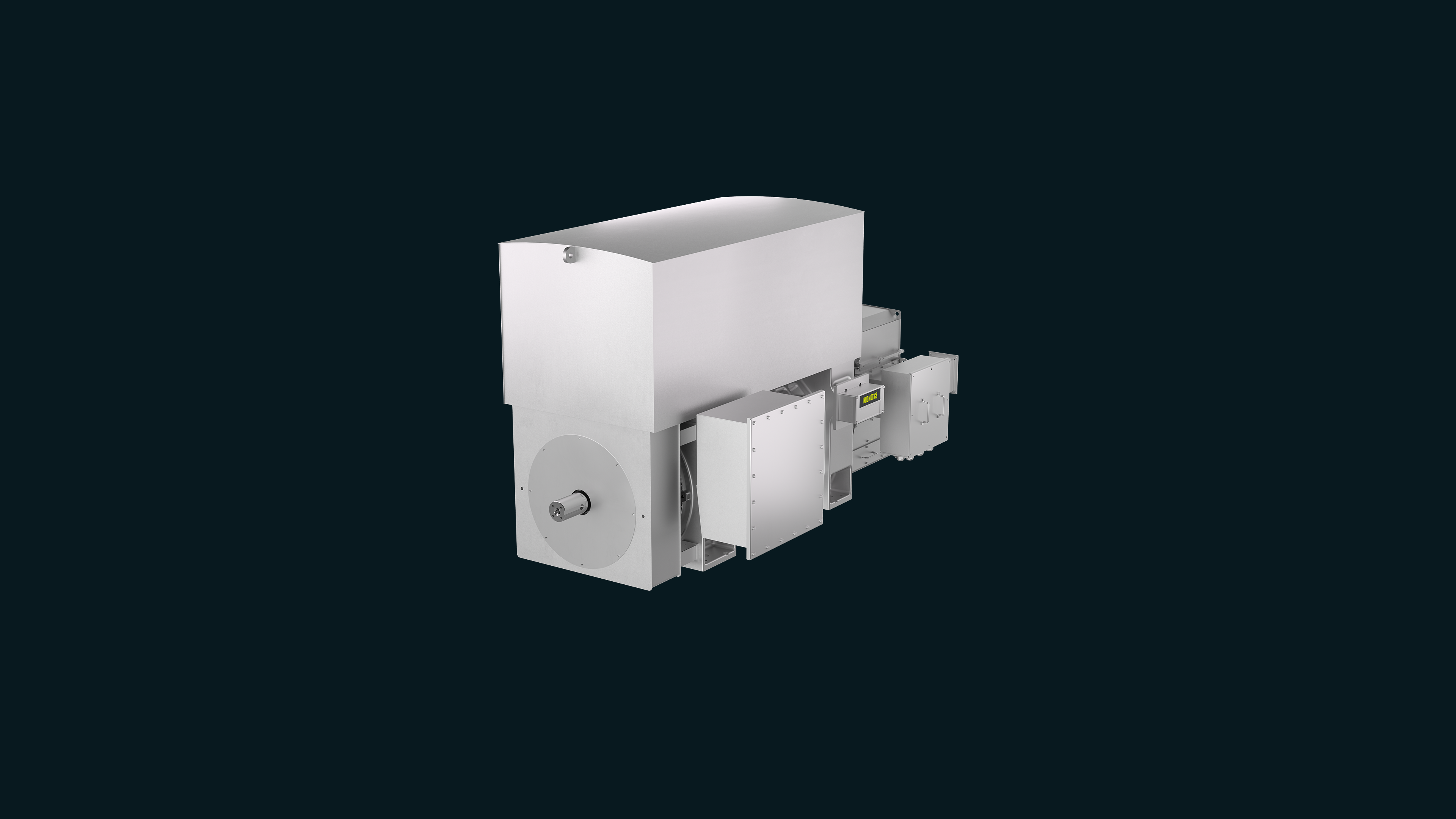

HV M Slipring

Type of motor: Asynchronous
Power range: 0.2 – 4.5 MW (higher on request)
Voltage range: up to 11 kV
Shaft height: 355 – 630 mm (higher on request)
Number of poles: 4 / 6 / 8
Operating mode: VSD /DOL

Learn more

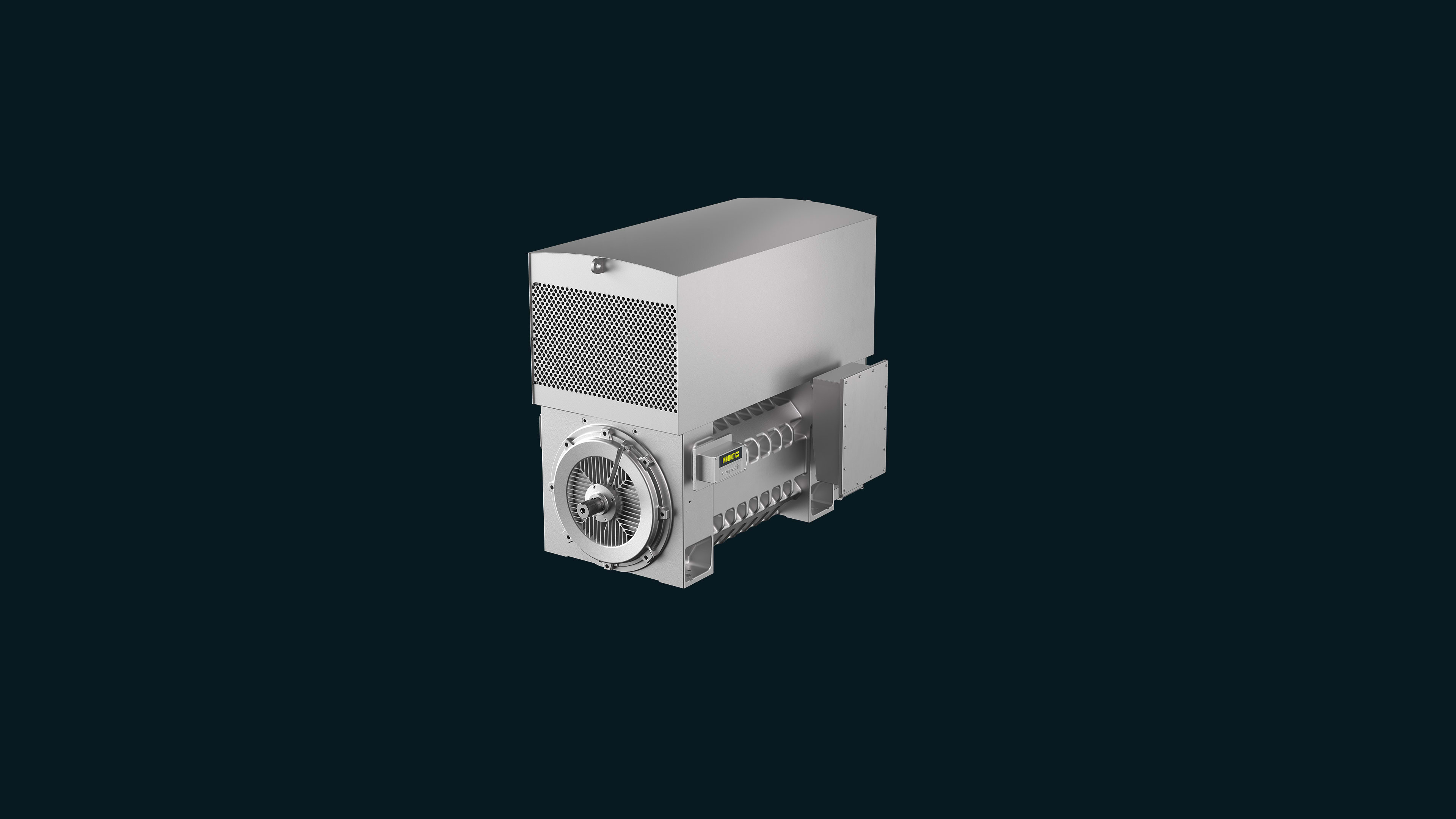

HV M A-compact-PLUS

Type of motor: Asynchronous
Power range: 0.25 – 7.35 MW
Voltage range: up to 11 kV
Shaft height: 355 – 630 mm
Number of poles: 2 – 16
Operating mode: VSD / DOL

Learn more

Your benefits with Innomotics Modular Motors

Significant cost efficiency

Reduce your total cost of ownership. Our motors offer scalable performance, optimize energy use, and simplify maintenance.

Higher productivity

Your processes must run continuously and efficiently. Our motors offer reliable performance tailored to your requirements. For less downtime and greater productivity.

Wide range of customization

Our Modular Motors are built to adapt – from cooling concepts to mounting and shaft design. So your motor fits exactly your application.

Global support and compatibility

Wherever you operate, our motors meet international standards and come with global service expertise. So you get consistent performance and support worldwide.
