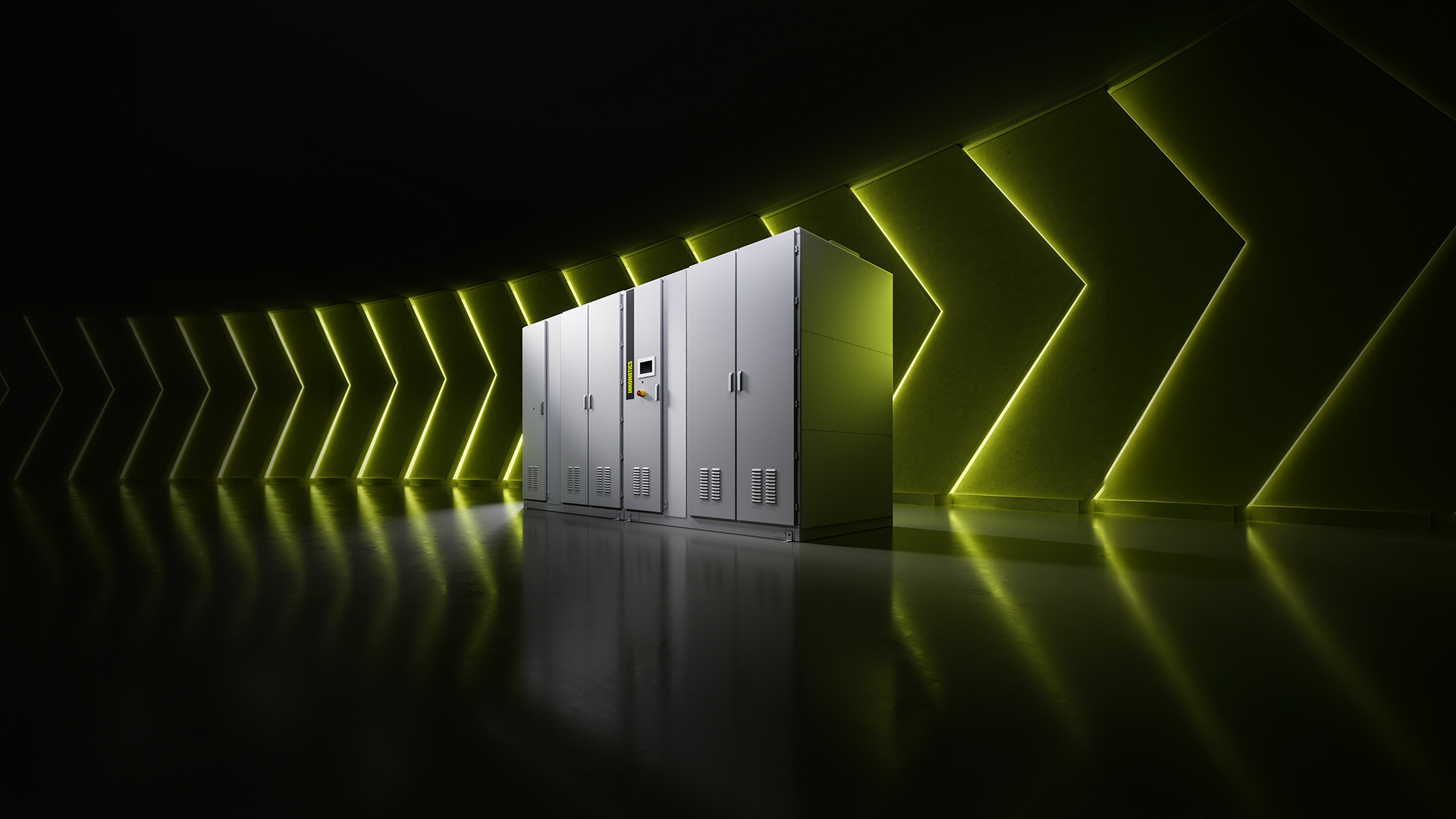

Special purpose drive SM150
Driving single and multi-motor drive systems.
High dynamic performance. Made for challenging applications.
Do you need a reliable and efficient medium voltage drive for applications in metals, mining, test stands or STATCOM? The SM150 is a special purpose drive, ideal for applications with low speed, high overload, high dynamic or cyclic load.
Flexible configuration options allow you to customize the SM150 according to your needs:
• Active Front End (AFE) as standard
• Many multi-motor DC-bus configurations available
• Available with IGBT or IGCT technology
• Enables energy-saving drive system solutions
In every application, it offers high dynamic performance and highest efficiency for both single and multi-motor systems as well as regenerative capabilities.
The SM150 is available for an extended range of medium voltage applications with IGBT or IGCT technology.
Count on dynamic. Your benefits.
Technical data overview
Innomotics SM150 is available with IGCT / IGBT power section for the power ratings given below. In a specific application, the power depends on the required load duty cycle.
Technology | Cooling | Rated output voltage | Power range |
|---|---|---|---|
IGCT | Water | 3.3 kV | 5 to 31.5 MVA |
IGBT | Air | 3.3 to 4.16 kV | 3.4 to 5.8 MVA |
IGBT | Water | 3.3 to 4.16 kV | 4.6 to 7.2 MVA |
Additional specifications
- Max. output frequency: 250 Hz
- Drive control method: Closed-loop control
- Degree of protection: Up to IP54 (IGCT), IGBT
Supporting demanding applications.
The SM150 special purpose drive excels in rolling mills, based on 30 years of application experience. It is also the preferred solution for mine winders, mill drives, test stands and conveyors, especially downhill. SM150 AFE is suitable for STATCOM applications as well.
Maximize availability and reliability. With proactive services and digitalization.
From consulting and service agreements to retrofits and monitoring: Our portfolio of services and digitalization with Inspire IQ allow you to unlock the full potential of your medium voltage drives.
